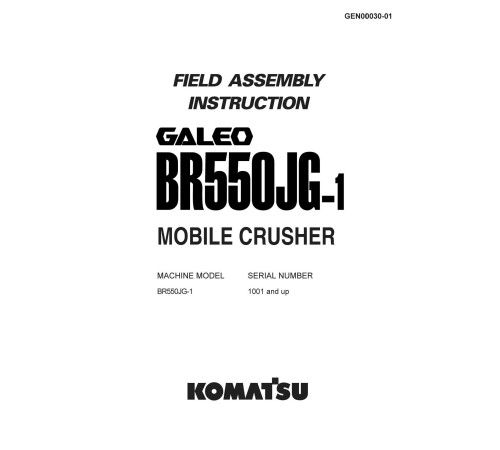

Komatsu BR550JG-1 (SN from 01001) Mobile Crushers (Japan) Field Assembly Manual (GEN00030-01)

Illustrated factory Field Assembly Manual for Komatsu Mobile Crushers Models BR550JG-1.

This manual will assist you in for your mobile crusher.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   BR550JG-1 (SN: 01001-)

Format: PDF, 102 pages
Language: English
Table of Contents:
   PREFACE
   SPECIFICATIONS
   PRECAUTIONS FOR FIELD ASSEMBLY
   OUTLINE OF WORK PROCESS
   KIT LAYOUT DRAWING
   PACKING POSTURE FOR TRANSPORTATION
   NECESSARY TOOLS
   TIGHTENING TORQUE
   COATING MATERIALS
   LIST OF SEPARATELY SHIPPED PARTS (MACHINE BODY RELATED PARTS)
   LIST OF SEPARATELY SHIPPED PARTS (WORK EQUIPMENT RELATED PARTS)
   PARTS WHICH NEED NOT TO BE ASSEMBLED (STORE THEM IN THE TOOL BOX)
   A. ASSEMBLY PROCEDURE

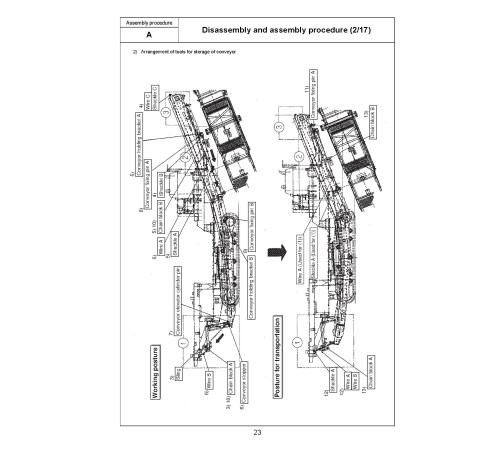

      DISASSEMBLY AND ASSEMBLY PROCEDURES
      A-1 ASSEMBLY OF THE CRUSHER ASS'Y
      A-2 INSTALLATION OF THE CRUSHER MOTOR HOSES
      A-3 INSTALLATION OF THE CONVEYOR LOCK CYLINDER HOSES
      A-4 INSTALLATION OF THE GUARD ASS'Y
      A-5 INSTALLATION OF THE DUST COVER PLATE ASS'Y AND THE COVER
      A-6 INSTALLATION OF THE BRACKET

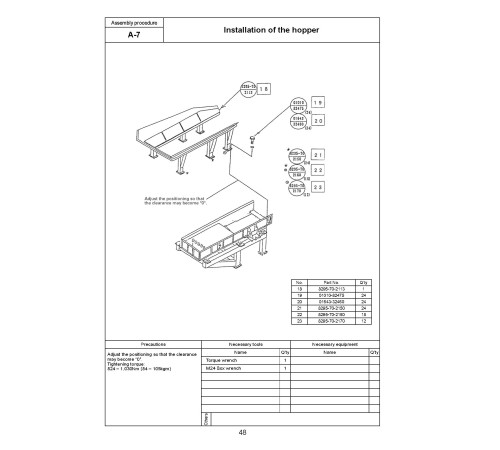

      A-7 INSTALLATION OF THE HOPPER
      A-8 INSTALLATION OF THE PRE-CLEANER ASS'Y
      A-9 INSTALLATION OF THE MUFFLER
      A-10 INSTALLATION OF THE REVOLVING WARNING LAMP AND MIRROR ASS'Y
      A-11 INSTALLATION OF THE REVOLVING WARNING LAMP CONNECTOR
      A-12 INSTALLATION OF THE HOOD ASS'Y
      A-13 INSTALLATION OF THE HANDRAIL ASS'Y
      A-14 INSTALLATION OF THE STEP
      A-15 CHECK OF OIL AND COOLANT LEVEL IN EACH PART
      A-16 AIR BLEEDING FROM HYDRAULIC CIRCUITS
   B. OPEN-CLOSE HOPPER RELATED PARTS
      PACKING POSTURE FOR TRANSPORTATION (OPEN-CLOSE HOPPER RELATED PARTS)
      LIST OF SEPARATELY SHIPPED PARTS
      B-1 INSTALLATION OF THE CYLINDERS (BOTTOM SIDE)
      B-2 INSTALLATION OF THE LOCKS
      B-3 INSTALLATION OF THE SUPPORTS
      B-4 INSTALLATION OF THE HOPPER

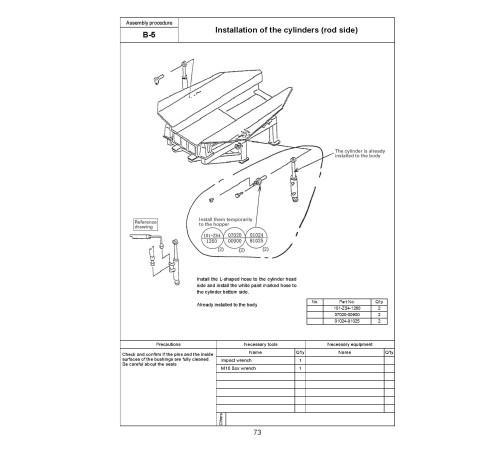

      B-5 INSTALLATION OF THE CYLINDERS (ROD SIDE)
      B-6 CONNECTION OF THE SWITCH BOX
      B-7 INSTALLATION OF THE RUBBER COVER ASS'Y
      B-8 INSTALLATION OF CONVEYOR PROTECTION PLATE (IF EQUIPPED)
      B-9 POSTURE OF OPEN-CLOSE TYPE HOPPER
   FIELD ASSEMBLY INSPECTION REPORT
