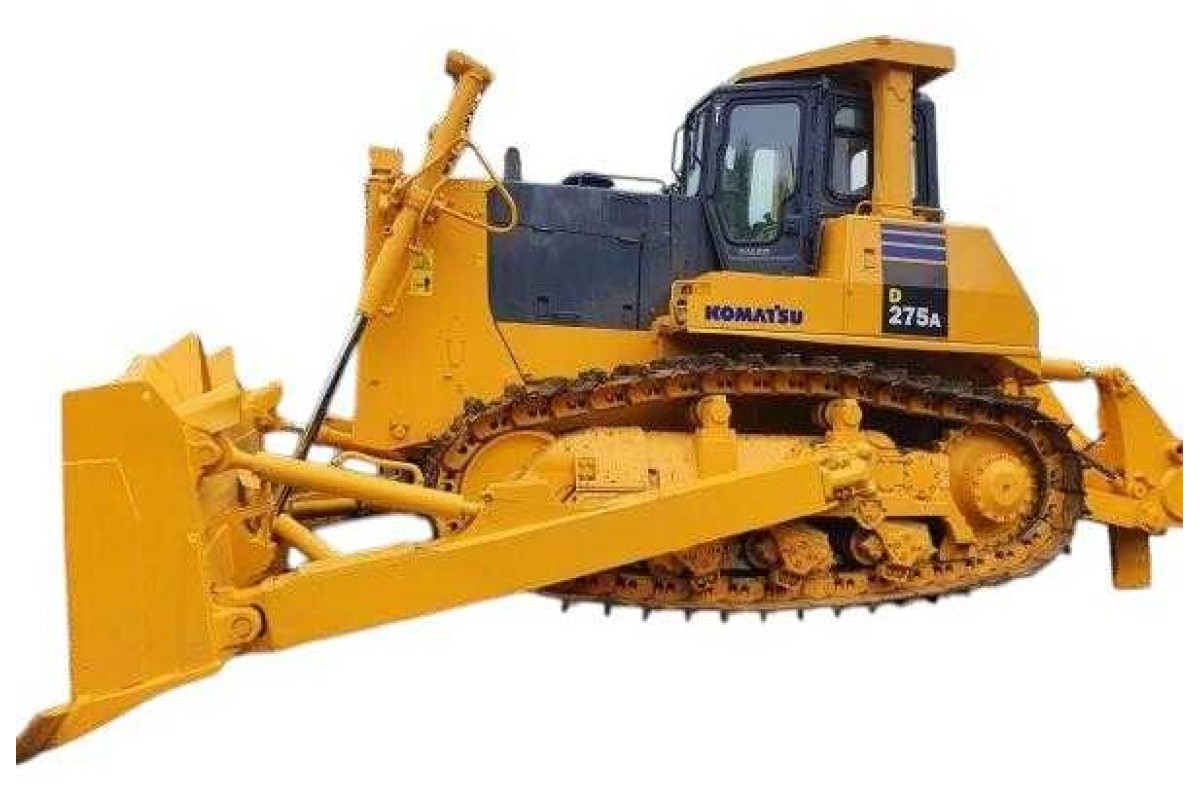

Komatsu D275A-5 (SN: 25001-25177), D275AX-5 (SN: 20001-20163) Crawler Dozers (Japan) Field Assembly Manual (GEN00047-00)

Illustrated factory Field Assembly Manual for Komatsu Crawler Dozers Models D275A-5 and D275AX-5.

This manual will assist you in for your crawler dozer.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   D275A-5 (SN: 25001-25177)
   D275AX-5 (SN: 20001-20163)

Format: PDF, 62 pages
Language: English
Table of Contents:
   PREFACE
   SPECIFICATIONS
   PRECAUTIONS FOR FIELD ASSEMBLY
   ASSEMBLY PROCEDURE, NECESSARY EQUIPMENT, AND SCHDULE
   STYLE FOR TRANSPORTATION
   TOOLS LIST FOR FIELD ASSEMBLY
   TIGHTENING TORQUE
   COATING MATERIALS
   A. ASSEMBLY PROCEDURE
      A-1 INSTALLING TRACK SHOES
      A-2 ASSEMBLY OF BLADE
      A-3 INSTALLATION OF BLADE
      A-4 INSTALLATION OF RIPPER

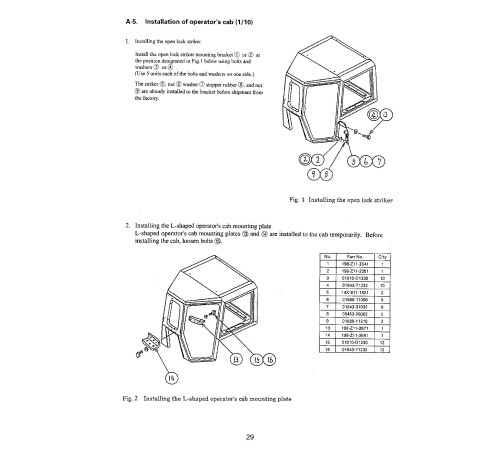

      A-5 INSTALLATION OF OPERATOR'S CAB
      A-6 INSTALLATION OF ROPS
      A-7 CHECK TRACK TENSION
      A-8 CHECK FUEL, COOLANT AND LUBRICANTS

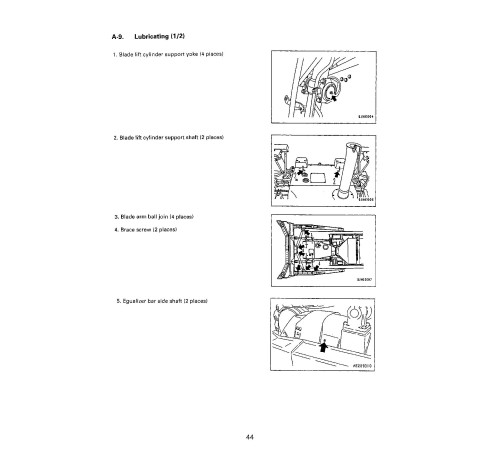

      A-9 LUBRICATING
      A-10 BLEEDING AIR FROM HYDRAULIC CYLINDERS
   M. CHECK AND MAINTENANCE PROCEDURES AFTER COMPLETION OF ASSEMBLY
      M-1 CHECK AND ADJUSTMENT OF OPERATOR'S CAB
   FIELD ASSEMBLY INSPECTION REPORT
