Komatsu Super Dozer D575A-3 (SN from 10101) Crawler Dozers (Japan) Field Assembly Manual (SEAWD02700)
Model
SEAWD02700
SKU
41542
Brand
Komatsu
Availability:
Ready for Instant Download
$10.00
Generation
3
Language
English
Model of Truck
D575A-3
Region
Japan
Truck Class
D575
All the features

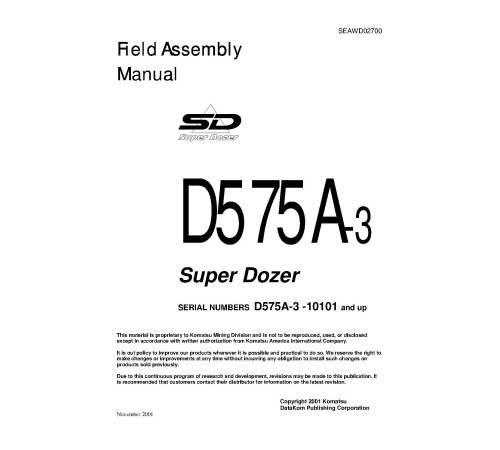

Illustrated factory Field Assembly Manual for Komatsu Super Dozer Crawler Dozers Models D575A-3.

This manual will assist you in for your crawler dozer.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   Super Dozer D575A-3 (SN: 10101-)

Format: PDF, 93 pages
Language: English
Table of Contents:
   ASSEMBLY PROCEDURE and TIME SCHEDULE(TRANSPORTED DISASSEMBLED - WEIGHTS LESS THAN 50 TONS)
   EQUIPMENT AND TOOLS TO BE USED
   ASSEMBLY MAP FOR TOOLS TO USED
   TRANSPORTATION POSTURE
   INSTALLATION PROCEDURE
      (1) UNLOADING BARE MACHINE
      (2) INSTALLATION OF OPERATING CABIN
      (3) INSTALLATION OF FOODS and EXHAUST PIPE
      (4) INSTALLATION OF PIVOT SHAFT
      (5) INSTALLATION OF FINAL DRIVE
      (6) INSTALLATION and REMOVAL OF CYLINDER SUPPORT

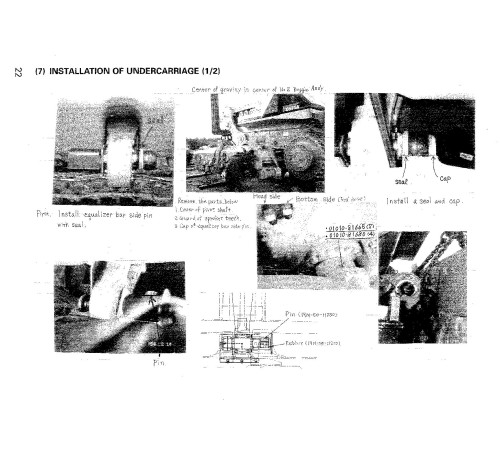

      (7) INSTALLATION OF UNDERCARRIAGE
      (8) INSTALLATION OF TRACK SHOE ASSEMBLY and TRUNNION
      (9) INSTALLATION OF BLADE CYLINDER and STAY
      (10) ASSEMBLE OF BLADE ASSEMBLY
      (11) INSTALLATION OF COUNTER WEIGHT
      (12) INSTALLATION OF ROPS
      (13) INSTALLATION OF HEAD LAMP
      (14) INSTALLATION OF HANDRAILS
      (15) INSTALLATION OF BLADE ASSEMBLY
      (16) INSTALLATION OF POTENTIOMETER
      (17) ADJUSTMENT OF TRACK TENSION and ALIGNMENT FOR CARRIER ROLLER
      (18) LUBRICATING ITEMS
   PROCEDURE MANUAL FOR INITIAL SETTING TILT LIMIT
   HOW TO CHECK AUTOMATIC RESETTING TO SYSTEMS

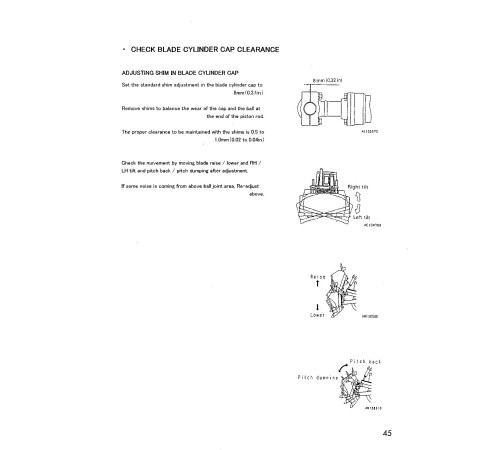

   BLEDDING AIR FROM HYDRAULIC CYLINDER
   TABLE OF FUEL COOLANT AND LUBRICANTS
   COATING MATERIALS
   STANDARD TIGHENING TORQUE
   WEAR PARTS LIST
   HOW TO CHECK ERROR CODE

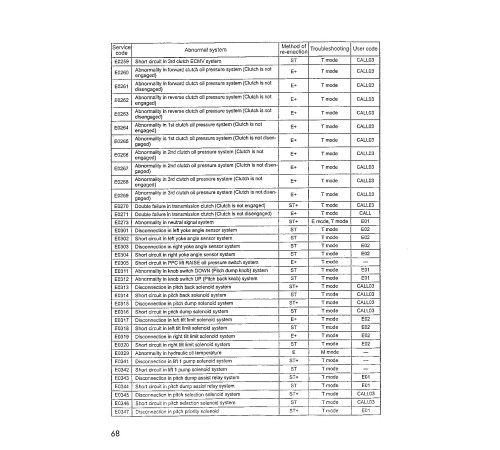

   ERROR CODE LIST
   ANNEX DATE 1. ASSEMBLY JIG DRAWING
   ANNEX DATE 2. INSTALLATION OF SPILL GUARD TO THE SUPPER BLADE
   CHECK SHEET

General

Generation
3
Language
English
Model of Truck
D575A-3
Region
Japan
Truck Class
D575
Type of Document
Field Assembly Manual
Type of Truck
Crawler Dozer
