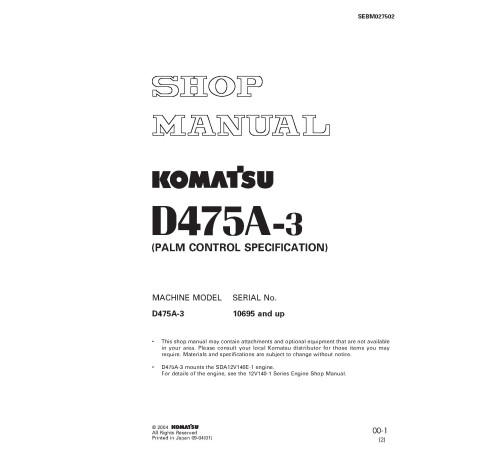

Komatsu D475A-3 (SN from 10695) Crawler Dozers (Japan) Workshop Manual (SEBM027502)

Illustrated factory Workshop Manual for Komatsu Crawler Dozers Models D475A-3.

This manual will assist you in diagnosing, repairing, and adjusting for your crawler dozer.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   D475A-3 (SN: 10695-)

Format: PDF, 738 pages
Language: English
Table of Contents:
   GENERAL
      SPECIFICATION DIMENSION DRAWINGS
      SPECIFICATIONS
      WEIGHT TABLE
      TABLE OF FUEL, COOLANT AND LUBRICANTS
   STRUCTURE AND FUNCTION
      ENGINE, POWER TRAIN COOLING SYSTEM DRAWING
      POWER TRAIN
      POWER TRAIN SKELETON
      POWER TRAIN HYDRAULIC PIPING DIAGRAM
      POWER TRAIN HYDRAULIC CIRCUIT DIAGRAM
      TORQUE CONVERTER AND PTO
      TORQUE CONVERTER VALVE
      TRANSMISSION
      TRANSMISSION CONTROL
      TRANSMISSION ECMV
      TRANSMISSION CLUTCH ECMV
      TRANSMISSION LUBRICATION RELIEF VALVE
      PRIORITY VALVE
      STEERING, BRAKE CONTROL
      TRANSFER, BEVEL GEAR SHAFT, STEERING
      TRANSFER, BEVEL PINION
      STEERING ECMV
      STEERING CLUTCH, STEERING BRAKE ECMV
      SUDDEN STOP PREVENTION VALVE
      FINAL DRIVE
      TRACK FRAME
      HYDRAULIC TANK
      PPC VALVE
      MAIN CONTROL VALVE
      PIN-PULLER HYDRAULIC SYSTEM DRAWING
      PIN-PULLER HYDRAULIC CIRCUIT DRAWING
      PIN-PULLER SOLENOID VALVE
      AIR CONDITIONER
      ENGINE CONTROL
      ENGINE CONTROL SYSTEM
      DECELERATION POTENTIOMETER
      ENGINE CONTROL SYSTEM WITH ELECTRONIC ENGINE THROTTLE CONTROLLER
      MONITOR SYSTEM
      MONITOR PANEL
      MODE SELECTION SYSTEM
      ELECTRICAL EQUIPMENT
      STEERING ELECTRONIC CONTROL
   TESTING AND ADJUSTING
      STANDARD VALUE TABLE FOR ENGINE RELATED PARTS
      STANDARD VALUE TABLE FOR CHASSIS RELATED PARTS

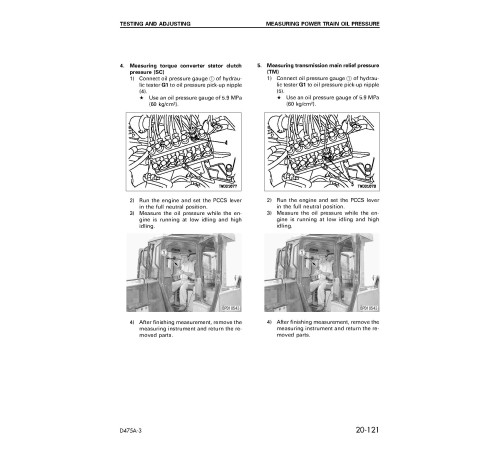

      TESTING AND ADJUSTING

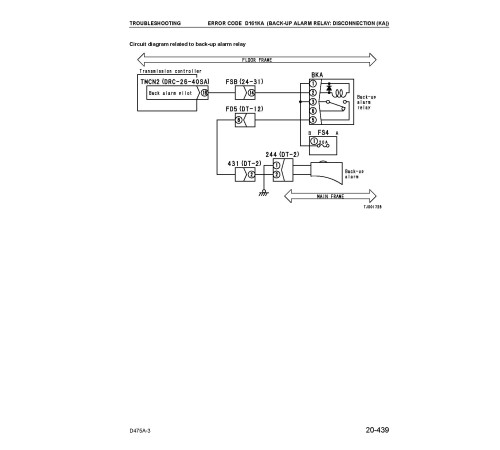

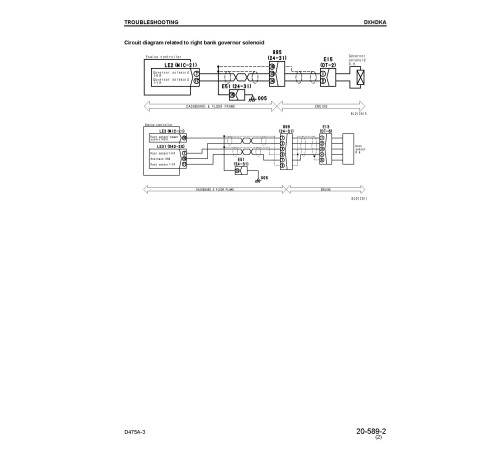

      TROUBLESHOOTING
   DISASSEMBLY AND ASSEMBLY
      POWER TRAIN UNIT ASSEMBLY
      PTO,TORQUE CONVERTER ASSEMBLY
      TORQFLOW TRANSMISSION ASSEMBLY
      STEERING CASE ASSEMBLY
      TRANSMISSION CONTROL VALVE ASSEMBLY
      STEERING CONTROL VALVE ASSEMBLY
      FLOOR FRAME ASSEMBLY
      DASHBOARD ASSEMBLY
      CONTROLLER ASSEMBLY
      AIR CONDITIONER UNIT ASSEMBLY
   MAINTENANCE STANDARD
      ENGINE MOUNT
      DAMPER, UNIVERSAL JOINT
      TORQUE CONVERTER
      TORQUE CONVERTER VALVE
      TORQFLOW TRANSMISSION
      POWER TRAIN, HYDRAULIC, LUBRICATION PUMP
      TRANSFER, BEVEL PINION
      BEVEL GEAR SHAFT, STEERING CLUTCH, BRAKE
      PARKING BRAKE VALVE
      FINAL DRIVE
      MAIN FRAME
      TRACK FRAME
      RECOIL SPRING
      IDLER
      TRACK ROLLER
      CARRIER ROLLER
      TRACK SHOE
      EQUALIZER BAR
      PIVOT SHAFT
      HYDRAULIC PUMP
      WORK EQUIPMENT CONTROL PUMP
      MAIN CONTROL VALVE
      PPC VALVE
      WORK EQUIPMENT CYLINDER
      CYLINDER STAY
      BLADE
      RIPPER EQUIPMENT
   OTHERS
      WORK EQUIPMENT HYDRAULIC CIRCUIT DIAGRAM
      ELECTRICAL CIRCUIT DIAGRAM
