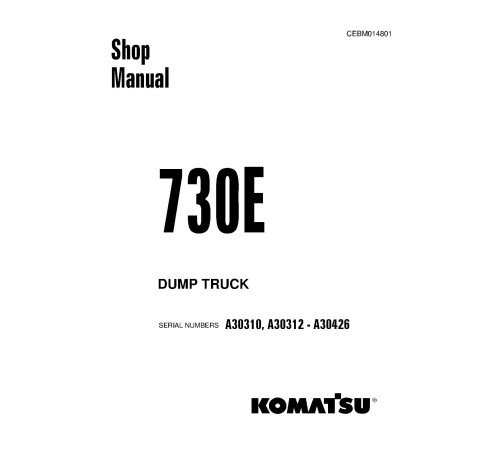

Komatsu 730E (SN: A30310; A30312-30426) Electric Dump Trucks (USA) Workshop Manual (CEBM014801)

Illustrated factory Workshop Manual for Komatsu Electric Dump Trucks Models 730E.

This manual will assist you in diagnosing, repairing, and adjusting for your electric dump truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (USA):
   730E (SN: A30310; A30312-30426)

Format: PDF, 1021 pages
Language: English
Table of Contents:
   A - GENERAL INFORMATION - INDEX
      A2 - MAJOR COMPONENT DESCRIPTION
      A3 - GENERAL SAFETY AND OPERATION - INDEX
      A4 - WARNINGS AND CAUTIONS
      A5 - STANDARD TORQUE CHARTS AND CONVERSION TABLES
      A7 - STORAGE AND IDLE MACHINE PREPARATION - INDEX
   B - STRUCTURES - INDEX
      B2 - STRUCTURAL COMPONENTS - INDEX
      B3 - DUMP BODY - INDEX
      B4 - FUEL TANK -INDEX
   C - ENGINE - INDEX
      C2 - POWER MODULE - INDEX
      C3 - COOLING SYSTEM - INDEX
      C4 - POWER TRAIN - INDEX
      C5 - AIR CLEANERS - INDEX
      C7 - FAN DRIVE CLUTCH - INEX
   D - ELECTRICAL SYSTEM (24 VDC NON-PROPULSION) - INDEX
      D2 - 24VDC ELECTRIC SUPPLY SYSTEM - INDEX
      D3 - 24VDC ELECTRICAL SYSTEM COMPONENTS - INDEX

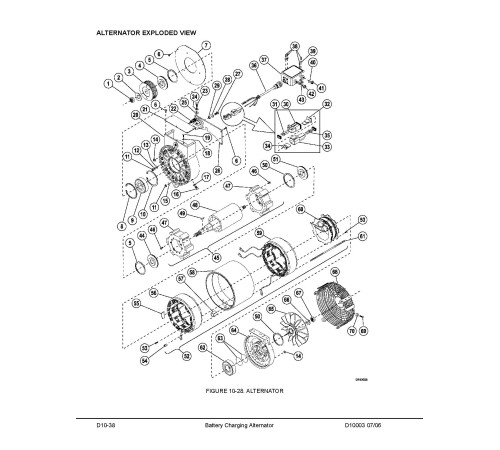

      D10 - BATTERY CHARGING ALTERNATOR - INDEX
      D35 - PAYLOAD METER III - INDEX
   E - ELECTRICAL PROPULSION COMPONENTS - INDEX
      E2 - ELECTRICAL PROPULSION COMPONENTS - INDEX
      E3 - STATEX III ELECTRICAL SYSTEM CHECKOUT PROCEDURE - INDEX
   G - DRIVE AXLE, SPINDLE, AND WHEELS - INDEX
      G2 - TIRES AND RIMS - INDEX
      G3 - FRONT WHEEL HUB AND SPINDLE - INDEX

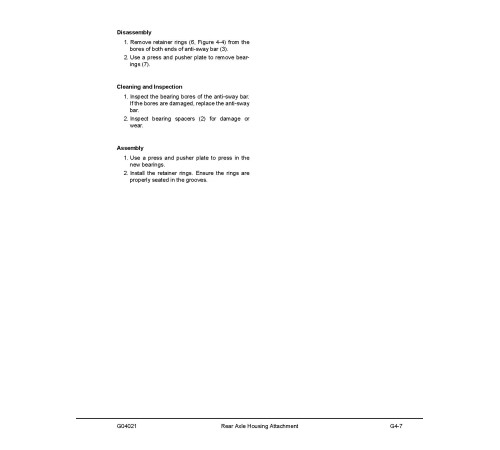

      G4 - REAR AXLE HOUSING - INDEX
      G5 - REAR AXLE HOUSING - INDEX
   H - SUSPENSION - INDEX
      H2 - FRONT SUSPENSION - INDEX
      H3 - REAR SUSPENSIONS - INDEX
      H4 - OILING AND CHARGING PROCEDURES - INDEX
   J - BRAKE CIRCUIT - INDEX
      J2 - BRAKE CIRCUIT - INDEX
      J3 - BRAKE CIRCUIT COMPONENT SERVICE - INDEX
      J4 - BRAKE CIRCUIT CHECK-OUT PROCEDURE - INDEX
      J5 - FRONT DISC BRAKES - INDEX
      J6 - REAR BRAKES - INDEX
      J7 - PARKING BRAKE - INDEX
   L - HYDRAULIC SYSTEM - INDEX
      L2 - HYDRAULIC SYSTEM - INDEX
      L3 - HYDRAULIC SYSTEM COMPONENT REPAIR - INDEX
      L4 - STEERING CIRCUIT - INDEX
      L5 - STEERING CONTROL UNIT - INDEX
      L6 - STEERING CIRCUIT COMPONENT REPAIR - INDEX
      L7 - HOIST CIRCUIT - INDEX

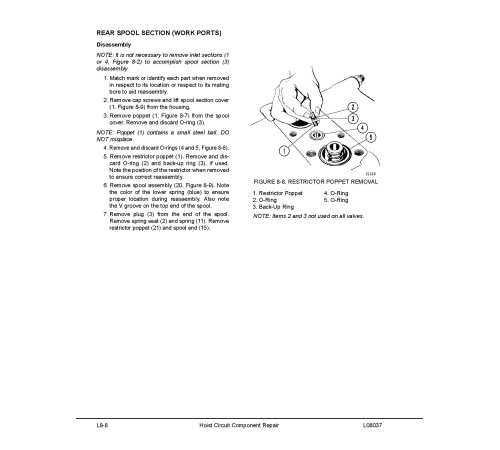

      L8 - HOIST CIRCUIT COMPONENT REPAIR - INDEX
      L9 - HIGH PRESSURE FILTERS - INDEX
      L10 - HYDRAULIC CHECK-OUT PROCEDURE - INDEX
   M - OPTIONS AND SPECIAL TOOLS - INDEX
      M7 - ENGINE OIL HEATER - INDEX
      M8 -SPECIAL TOOLS
   N - OPERATOR`S CAB - INDEX
      N2 - TRUCK CAB - INDEX
      N3 - CAB COMPONENTS - INDEX
      N4 - OPERATOR COMFORT - INDEX
      N5 - OPERATOR CONTROLS AND EQUIPMENT - INDEX
   P - LUBRICATION AND SERVICE - INDEX
      P2 - LUBRICATION AND SERVICE - INDEX
      P3 - AUTOMATIC LUBRICATION SYSTEM - INDEX
      P4 - MOTORIZED WHEEL MAINTENANCE SCHEDULE - INDEX
   R - SYSTEM SCHEMATICS - INDEX
      HYDRAULIC BRAKE SYSTEM SCHEMATIC
      HYDRAULIC SYSTEM SCHEMATIC
      ELECTRICAL SCHEMATIC
      VHMS SYSTEM SCHEMATIC
