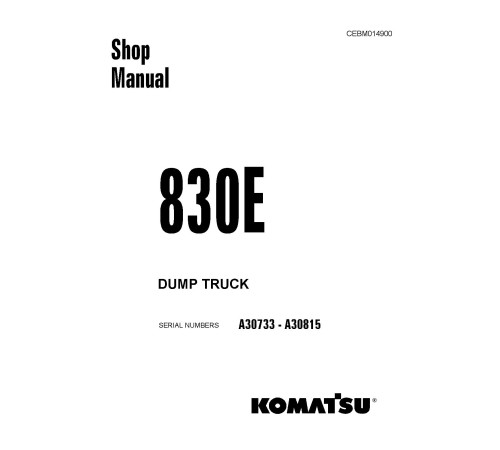

Komatsu 830E (SN: A30733-30815) Electric Dump Trucks (USA) Workshop Manual (CEBM014900D)

Illustrated factory Workshop Manual for Komatsu Electric Dump Trucks Models 830E.

This manual will assist you in diagnosing, repairing, and adjusting for your electric dump truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (USA):
   830E (SN: A30733-30815)

Format: PDF, 823 pages
Language: English
Table of Contents:
   FOREWORD
   TABLE OF CONTENTS
   GENERAL INFORMATION
      MAJOR COMPONENT DESCRIPTION
      GENERAL SAFETY
      WARNINGS AND CAUTIONS
      STANDARD CHARTS AND TABLES
      STORAGE AND IDLE MACHINE PREPARATION
   STRUCTURES
      STRUCTURAL COMPONENTS
      DUMP BODY
   ENGINE
      POWER MODULE
      COOLING SYSTEM
      POWER TRAIN
      AIR FILTRATION SYSTEM
      FAN CLUTCH
   ELECTRICAL SYSTEM (24VDC NON-PROPULSION
      VDC ELECTRIC SUPPLY SYSTEM
      VDC ELECTRICAL SYSTEM COMPONENTS

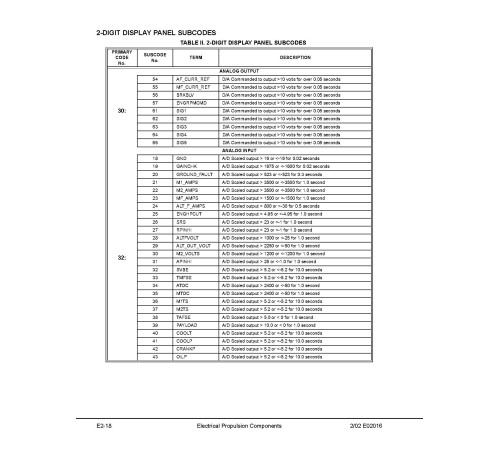

   ELECTRICAL PROPULSION COMPONENTS
      ELECTRICAL PROPULSION COMPONENTS
      STATEX III ELECTRICAL SYSTEM CHECKOUT PROCEDURE
   DRIVE AXLE, SPINDLE AND WHEELS
      TIRES AND RIMS
      FRONT WHEEL HUB AND SPINDLE
      REAR AXLE HOUSING ATTACHMENT
      REAR AXLE HOUSING
   SUSPENSIONS
      FRONT SUSPENSION
      REAR SUSPENSIONS
      OILING AND CHARGING PROCEDURE
   BRAKE CIRCUIT
      BRAKE CIRCUIT
      BRAKE CIRCUIT COMPONENT SERVICE
      BRAKE CIRCUIT CHECK-OUT PROCEDURE

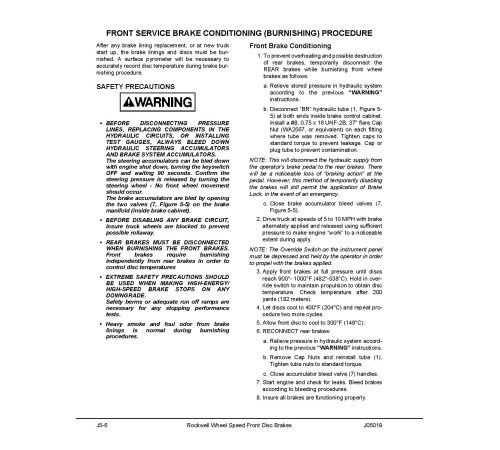

      ROCKWELL WHEEL SPEED FRONT DISC BRAKES
      ROCKWELL ARMATURE SPEED REAR DISC BRAKES
      ROCKWELL DISC PARKING BRAKE
   HYDRAULIC SYSTEM
      HYDRAULIC SYSTEM
      HYDRAULIC SYSTEM COMPONENT REPAIR
      STEERING CIRCUIT
      STEERING CIRCUIT COMPONENT REPAIR
      HOIST CIRCUIT
      HOIST CIRCUIT COMPONENT REPAIR
      HYDRAULIC CHECKOUT PROCEDURE
   OPTIONS AND SPECIAL TOOLS
      FIRE CONTROL SYSTEM (MANUAL)
      WIGGINS QUICK FILL FUEL SYSTEM
      BUCKEYE QUICK FUEL SYSTEM
      ENGINE COOLANT HEATER
      SPECIAL TOOLS

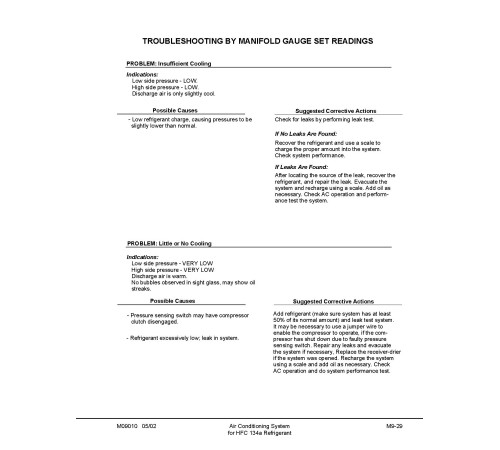

      AIR CONDITIONING SYSTEM
      RADIATOR SHUTTERS
      PAYLOAD METER III ™
      RESERVE ENGINE OIL SYSTEM
   OPERATORS CAB
      TRUCK CAB
      CAB COMPONENTS
      OPERATOR COMFORT
      OPERATOR CONTROLS AND EQUIPMENT
   LUBRICATION AND SERVICE
      LUBRICATION AND SERVICE
      AUTOMATIC LUBRICATION SYSTEM
      MOTORIZED WHEEL MAINTENANCE SCHEDULE
   ALPHABETICAL INDEX
   SYSTEM SCHEMATICS
      HH353 HYDRAULIC SCHEMATIC
      HH354 HYDRAULIC BRAKE SCHEMATIC
      HE481 PAYLOAD METER III SCHEMATIC
      XS1400 ELECTRIC SCHEMATIC
