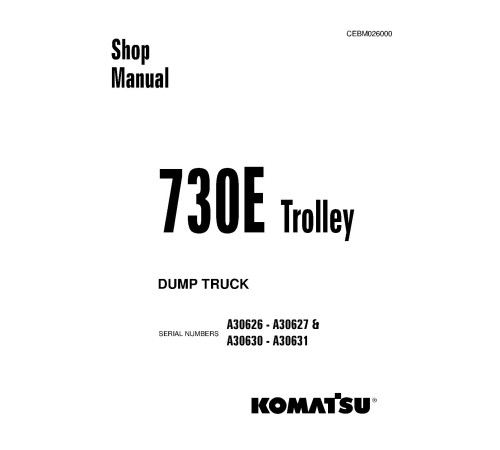

Komatsu 730E Trolley (SN: A30626-30627; A30630-30631) Electric Dump Trucks (USA) Workshop Manual (CEBM026000)

Illustrated factory Workshop Manual for Komatsu Electric Dump Trucks with trolley assist Models 730E Trolley.

This manual will assist you in diagnosing, repairing, and adjusting for your electric dump truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (USA):
   730E Trolley (SN: A30626-30627; A30630-30631)

Format: PDF, 1024 pages
Language: English
Table of Contents:
   FOREWORD
   TABLE OF CONTENTS
   A GENERAL INFORMATION INDEX
      SPECIFICATIONS
      A3 GENERAL SAFETY AND OPERATION INDEX
      A4 WARNINGS AND CAUTIONS
      A5 TORQUE TABLES AND CONVERSION CHARTS
      A7 STORAGE AND IDLE MACHINE PREPARATION INDEX
   B STRUCTURES INDEX
      B2 STRUCTURAL COMPONENTS INDEX
      B3 DUMP BODY INDEX
      B4 FUEL TANK INDEX
   C ENGINE INDEX
      C2 POWER MODULE INDEX
      C3 COOLING SYSTEM INDEX
      C4 POWER TRAIN INDEX
      C5 AIR CLEANERS INDEX
      C7 FAN DRIVE CLUTCH INDEX
   D ELECTRICAL SYSTEM (24VDC NON-PROPULSION) INDEX
      D2 24VDC ELECTRIC SUPPLY SYSTEM INDEX
      D3 24VDC ELECTRICAL SYSTEM COMPONENTS INDEX
      D10 CHARGING SYSTEM INDEX

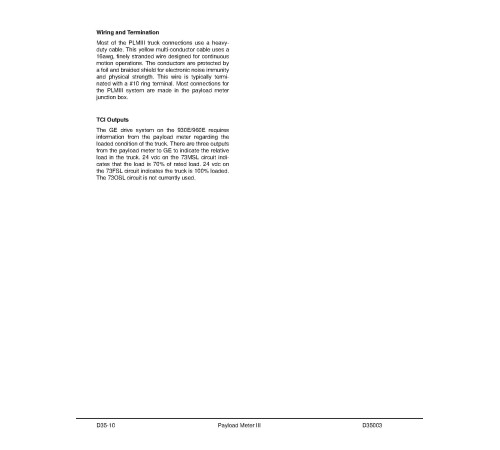

      D35 PAYLOAD METER III INDEX
   E ELECTRICAL PROPULSION INDEX
      E2 ELECTRICAL PROPULSION COMPONENTS INDEX
      E3 STATEX III ELECTRICAL SYSTEM CHECKOUT PROCEDURE INDEX
   G DRIVE AXLE, SPINDLE, AND WHEELS INDEX
      G2 TIRES AND RIMS INDEX
      G3 FRONT WHEEL HUB AND SPINDLE INDEX
      G4 REAR AXLE HOUSING ATTACHMENTS INDEX
      G5 REAR AXLE HOUSING INDEX
   H SUSPENSIONS INDEX
      H2 FRONT SUSPENSION INDEX
      H3 REAR SUSPENSIONS INDEX
      H4 OILING AND CHARGING PROCEDURES INDEX
   J BRAKE CIRCUIT INDEX

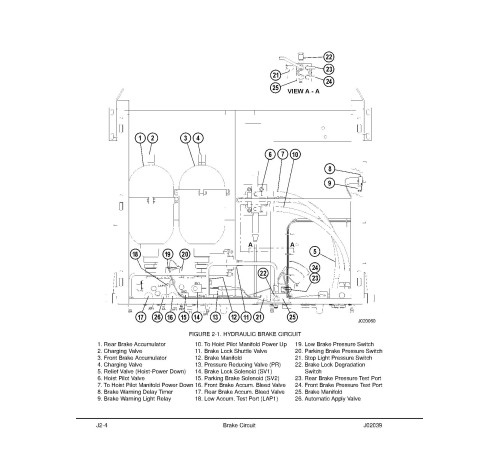

      J2 BRAKE CIRCUIT INDEX
      J3 BRAKE CIRCUIT COMPONENT SERVICE INDEX
      J4 BRAKE CIRCUIT CHECK-OUT PROCEDURE INDEX
      J5 FRONT DISC BRAKES INDEX
      J6 REAR BRAKES INDEX
      J7 PARKING BRAKE INDEX
   L HYDRAULIC SYSTEM INDEX
      L2 HYDRAULIC SYSTEM OVERVIEW
      L3 HYDRAULIC SYSTEM COMPONENT REPAIR
      L4 STEERING CIRCUIT INDEX
      L5 STEERING CONTROL VALVE INDEX
      L6 STEERING CIRCUIT COMPONENT REPAIR INDEX
      L7 HOIST CIRCUIT INDEX
      L8 HOIST CIRCUIT COMPONENT REPAIR INDEX
      L9 HIGH PRESSURE FILTERS INDEX
      L10 HYDRAULIC CHECKOUT PROCEDURE
   M OPTIONS AND SPECIAL TOOLS INDEX
      M4 ELECTRIC DRIVE COOLING AIR FILTER SYSTEM INDEX
      M7 HEATER OPTIONS INDEX
      M8 SPECIAL TOOLS INDEX
      M19 RADIATOR SHUTTERS INDEX
   N OPERATOR`S CAB INDEX
      N2 TRUCK CAB INDEX
      N3 CAB COMPONENTS INDEX
      N4 OPERATOR COMFORT INDEX
      N5 OPERATOR CONTROLS AND EQUIPMENT INDEX
   P LUBRICATION AND SERVICE INDEX
      P2 LUBRICATION AND SERVICE INDEX
      P3 AUTOMATIC LUBRICATION SYSTEM INDEX
      P4 MOTORIZED WHEEL MAINTENANCE SCHEDULE INDEX
   R SYSTEM SCHEMATICS
      EJ1735 BRAKE SCHEMATIC
      EK3630 HYDRAULIC SCHEMATIC
      XS1000 ELECTRICAL SCHEMATIC
      HE484 HVAC ELECTRICAL SCHEMATIC
