Model
DG667SKU
41256Brand
KomatsuAvailability:
Ready for Instant DownloadThis manual does not contain engine information. Depending on the engine used, see the manuals: Cummins KTTA50-C: [Cummin- KTTA50] Detroit Diesel 16V-149TIB: [16V-149TIB]
$25.00
Language
EnglishModel of Truck
685ERegion
USAType of Document
Workshop ManualType of Truck

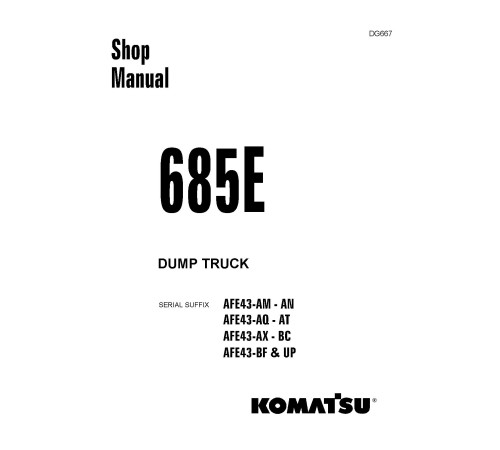

Electric Dump TruckIllustrated factory Workshop Manual for Komatsu Electric Dump Trucks Models 685E.
This manual will assist you in diagnosing, repairing, and adjusting for your electric dump truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.
Covered Models (USA):
685E (SN: 31621-31621; 32023-32080; 32158-32182; 32261-32300; 32303-32312; 32363-32364; 32371-32398; 32502-32578; 32733-32733)
Format: PDF, 863 pages
Language: English

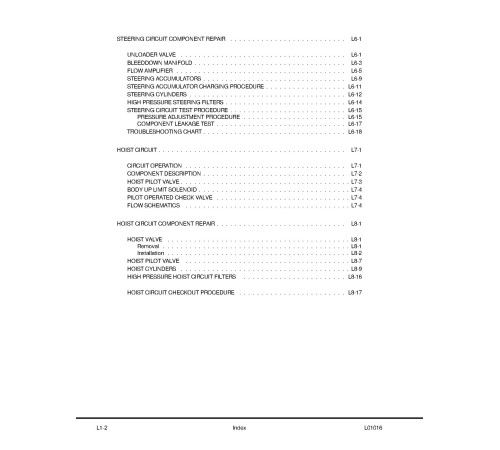

Table of Contents:
GENERAL INFORMATION
STRUCTURES
ENGINE, FUEL, COOLING AND AIR CLEANER
ELECTRIC SYSTEM (24 VDC. NON-PROPULSION)

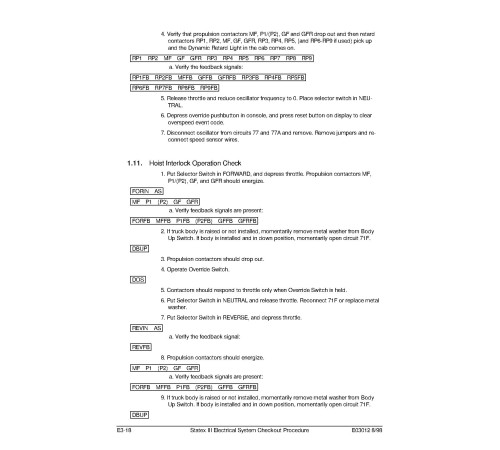

ELECTRIC PROPULSION AND CONTROL
DRIVE AXLE, SPINDLES AND WHEELS
HYDRAIR® II SUSPENSIONS
BRAKE CIRCUIT
AIR SYSTEM
HYDRAULIC SYSTEM
OPTIONS AND SPECIAL TOOLS
OPERATOR’S CAB
LUBRICATION AND SERVICE
ALPHABETICAL INDEX
SYSTEM SCHEMATICS .
