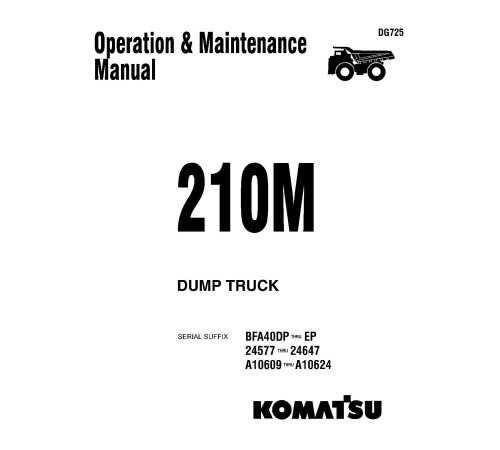

Komatsu (Haulpak) 210M (SN:BFA40-DP..BFA40-EP;24577-24647;A10609-A10624) Rigid Dump Trucks Operate and Maintenance manual (DG725)

Illustrated factory Operate and Maintenance manual for Komatsu Rigid Dump Trucks Models 210M and Haulpak Rigid Dump Trucks Models 210M.

This manual will assist you in operating, and maintaining for your rigid dump truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (USA):
   210M (SN: 24577-24647; A10609-A10624)
   Haulpak 210M (SN: BFA40-DP-BFA40-EP)

Format: PDF, 72 pages
Language: English
Table of Contents:
   INTRODUCTION
      FOREWORD
      ALERTS PAGE - A DESCRIPTION OF THE DANGER, WARNING, AND CAUTION SYMBOLS USED IN THIS MANUAL
      TABLE OF CONTENTS
      TRUCK MODEL ILLUSTRATION
      ABOUT THIS MANUAL

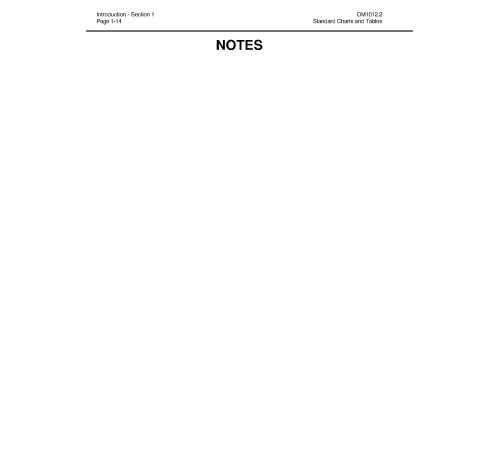

      STANDARD CHARTS AND TABLES
   SAFETY
      GENERAL SAFETY RULES
      WARNING, CAUTION, AND INSTRUCTION PLATES/DECALS
   OPERATION
      OPERATING INSTRUCTIONS
      ENGINE START-UP SAFETY PRACTICES
      AFTER ENGINE HAS STARTED
      MACHINE OPERATION SAFETY PRECAUTIONS
      LOADING
      HAULING
      PASSING
      DUMPING

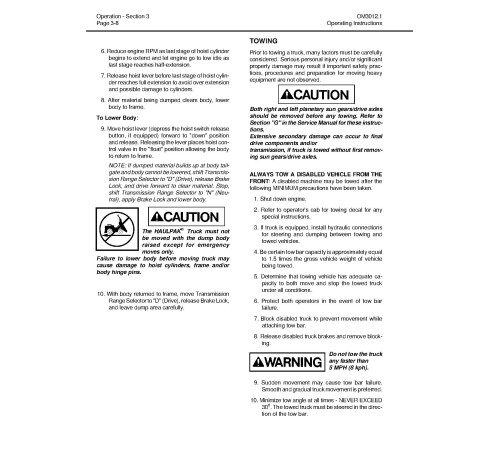

      TOWING
      SAFE PARKING PROCEDURES
      SHUTDOWN PROCEDURE
   OPERATOR CONTROLS AND EQUIPMENT (FIGURE 3-2)
      (1) STEERING COLUMN AND CONTROLS
      (2) DIMMER SWITCH AND TURN SIGNALS
      (3) TILT LEVER
      (4) HORN AND TELESCOPING ADJUSTMENT
      (5) HOIST CONTROL LEVER
      (6) RETARDER PEDAL
      (7) SERVICE BRAKE PEDAL
      (8) THROTTLE PEDAL
      (9) LIGHTER
      (10) ASH TRAY
      (11) RANGE SELECTOR
      (12) DO NOT SHIFT LIGHT
      OPERATOR SEAT
   INSTRUMENTS AND CONTROLS
      INSTRUMENT PANEL(PANEL GAUGES, INDICATORS, AND CONTROLS - DISCUSSION IF ITEMS 1-59, FIGURE 3-5)
      INSTRUMENT PANEL (FIGURE 3-5)
      CUMMINS "QUANTUM" ENGINE ELECTRONIC CONTROL SYSTEM

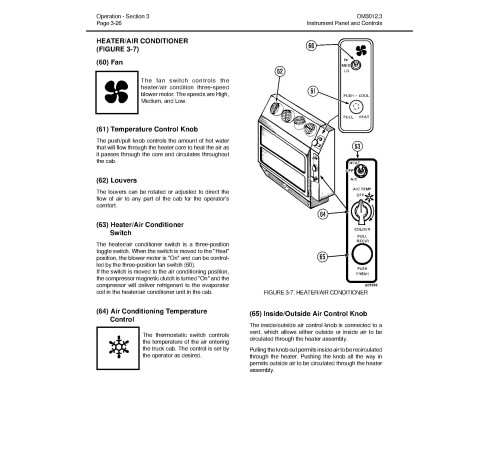

      HEATER/AIR CONDITIONER (FIGURE 3-7)
   MAINTENANCE
      LUBRICATION AND SERVICE
   SPECIFICATIONS
      MAJOR COMPONENT DESCRIPTIONS
      SPECIFICATIONS
