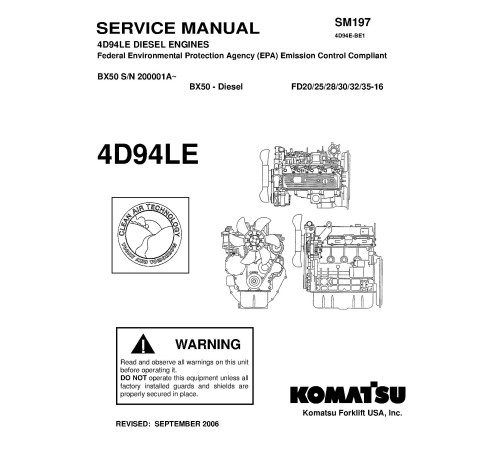

Komatsu 4D94LE Diesel Engines (Applicable for FD20/25/28/30/32/35-16 Forklift Trucks) Repair Manual (4D94LE-BE1_SM197)

Illustrated factory Repair Manual for Komatsu Diesel Engines Models 4D94LE.

Applicable for BX50 series Diesel forklift trucks models FD20/25/28/30/32/35-16, SN. from 200001A

This manual will assist you in assembling, disassembling, and repairing for your diesel engine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   4D94LE

Format: PDF, 132 pages
Language: English
Table of Contents:
   SAFETY
   CH. 0 - GENERAL DESCRIPTION
   CH. 1 - ADJUSTMENT OF ENGINE
      VALVE CLEARANCE
      FAN BELT
      IGNITION TIMING (EXPORT ONLY)
      NO-LOAD ROTATING SPEED
   CH. 2 - TROUBLESHOOTING
      TROUBLESHOOTING TABLES
      ENGINE COMPRESSION
   CH. 3 - ENGINE BODY
      INTRODUCTION

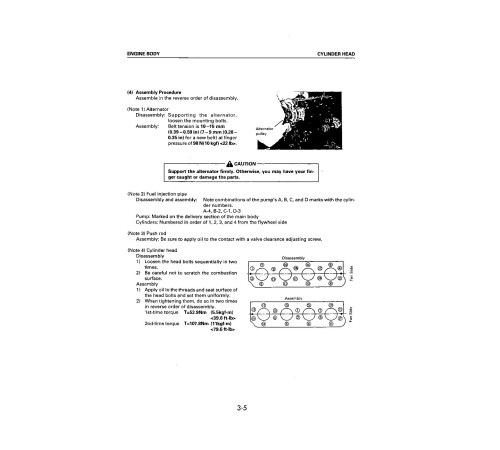

      CYLINDER HEAD
      GEAR TRAIN & CAMSHAFT
      CYLINDER BLOCK
   CH. 4 - LUBRICATION SYSTEM
   CH. 5 - COOLING SYSTEM

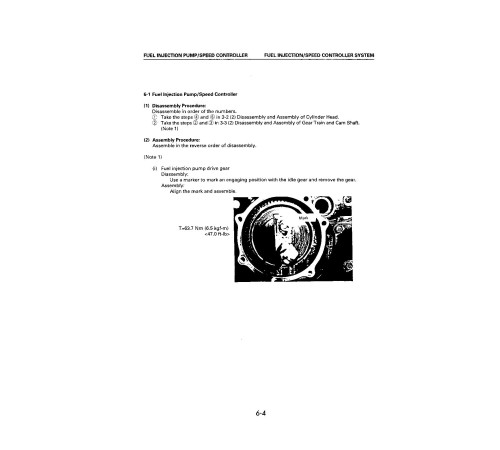

   CH. 6 - FUEL INJECTION / SPEED CONTROLLER

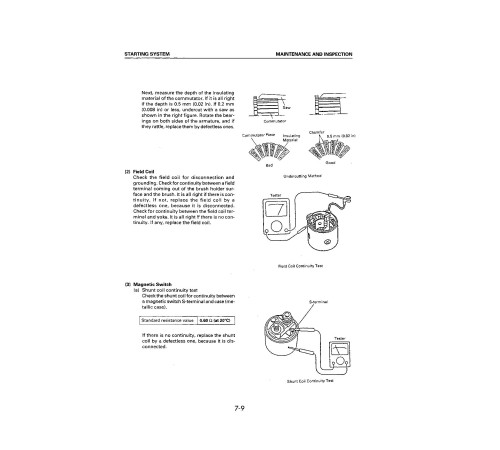

   CH. 7 - STARTING SYSTEM
   CH. 8 - CHARGING SYSTEM - ALTERNATOR W/ BUILT-IN FAN
   CH. 9 - SPECIAL PURPOSE SERVICE TOOLS
   CH. 10 - MAINTENANCE STANDARD
