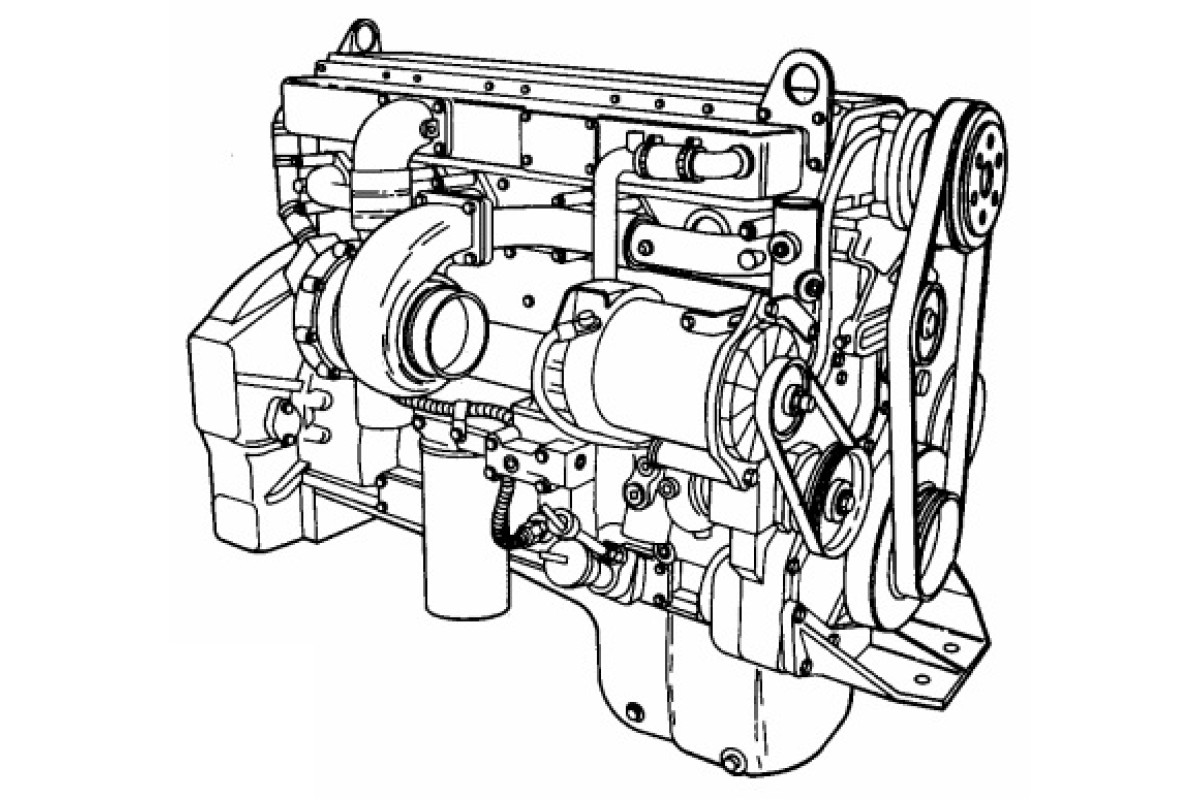

Cummins L10 Series Diesel Engines set of Service Manuals (cummins-L10)

Illustrated factory set of Service Manuals for Cummins Diesel Engines Models L10 Series.

This manuals will assist you in diagnosing, repairing, adjusting, troubleshooting, assembling, and disassembling for your diesel engine.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   L10 Series

The manual comprises 2 documents, including the Workshop Manual, and Diagnostic and Repair Manual

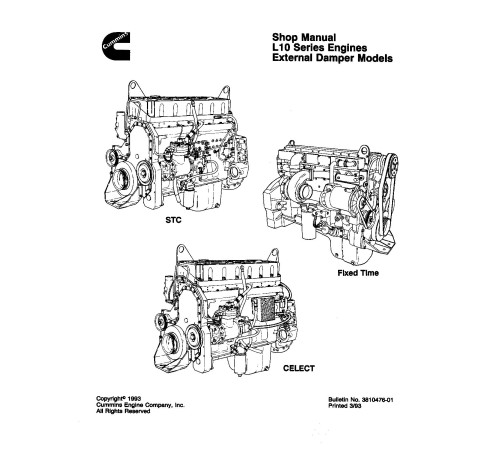

1. Workshop Manual (3810476)
Language: English
Publication Date: 01 Jan 2005
Table of Contents:
   Introduction
   Engine Identification
   Engine Disassembly and Assembly
   Cylinder Block
   Cylinder Head
   Rocker Levers
   Cam Followers
   Fuel System
   Injectors and Fuel Lines
   Lubricating Oil System
   Cooling System
   Drive Units
   Air Intake System
   Exhaust System
   Air Equipment
   Electrical Equipment
   Engine Testing
   Instruments and Controls
   Mounting Adaptations
   Specifications
   Vehicle Braking
   Service Literature
   Component Manufacturers: Names and Addresses

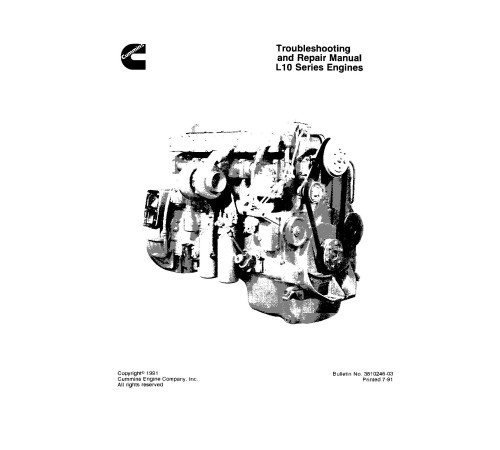

2. Diagnostic and Repair Manual (3810246)
Format: PDF, 619 pages
Language: English
Table of Contents:
   FOREWORD
   TABLE OF CONTENTS
   SECTION I - INTRODUCTION
      ABOUT THE MANUAL
      HOW TO USE THE MANUAL

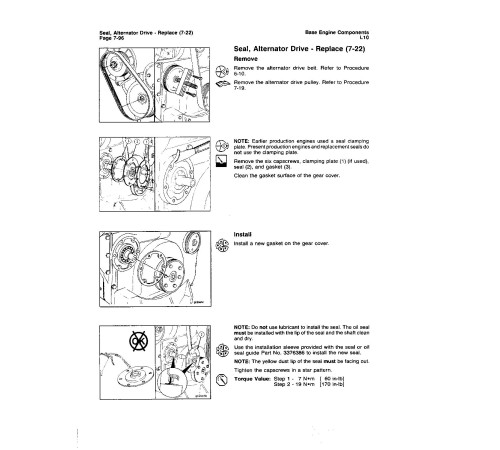

      SYMBOLS USED IN THIS MANUAL
      ILLUSTRATIONS
      DEFINITION OF TERMS
      GENERAL REPAIR INSTRUCTIONS
      GENERAL CLEANING INSTRUCTIONS
   SECTION E - ENGINE IDENTIFICATION
      ENGINE DATAPLATE
      ENGINE SPECIFICATIONS
      ENGINE DIAGRAMS
   SECTION T - TROUBLESHOOTING
      PROCEDURES AND TECHNIQUES
      TROUBLESHOOTING SYMPTOMS
   SECTION 1 - COOLING SYSTEM
      COOLING SYSTEM
      GENERAL INFORMATION
      COOLING SYSTEM SPECIFICATIONS
      COOLING SYSTEM FLOW DIAGRAMS
      COOLING SYSTEM VENTING
      COOLING SYSTEM, MAINTENANCE
      COOLING SYSTEM, DRAIN
      COOLING SYSTEM, FILL
      DIESEL COOLANT ADDITIVES (DCA4)
      COOLING SYSTEM, CLEAN
      PRESSURE TEST THE COOLING SYSTEM
      COOLANT FILTER
      HOSES
      COOLANT TEMPERATURE GAUGE
      RADIATOR PRESSURE CAP
      RADIATOR
      RADIATOR SHUTTERS
      FAN, SHROUD, SPACER AND PULLEY
      FAN DRIVE BELT
      FAN CLUTCH (GEAR DRIVEN)
      TEMPERATURE SENSOR
      SOLENOID VALVE
      FAN CLUTCH (VISCOUS)
      FAN HUB, BELT DRIVEN-REPLACE
      IDLER PULLEY, FAN DRIVE BELT
      THERMOSTAT
      THERMOSTAT HOUSING SUPPORT (CONVENTIONAL AFTERCOOLING)
      THERMOSTAT HOUSING (OPTIMIZED AFTERCOOLING)

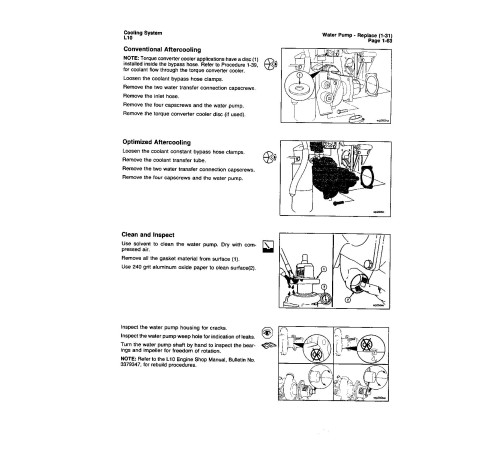

      WATER PUMP
      WATER HEATER HOUSING
      WATER HEADER PLATE
      WATER FILTER HEAD
      CYLINDER HEAD COVER PLATE
      CYLINDER BLOCK AND LINER SEATS
      RADIATOR BAFFLE LEAKAGE (OPTIMIZED AFTERCOOLING ONLY
      RADIATOR CHECK VALVE LEAKAGE
      TORQUE CONVERTER COOLER
      COOLING SYSTEM DIAGNOSTIC PROCEDURES
      RADIATOR INTERNAL BLOCKAGE
   SECTION 2 - LUBRICATING OIL SYSTEM
      LUBRICATING OIL SYSTEM
      GENERAL INFORMATION
      LUBRICATING OIL SYSTEM SPECIFICATIONS
      LUBRICATING OIL SYSTEM FLOW DIAGRAMS
      OIL PRESSURE GAUGE
      OIL TEMPERATURE GAUGE
      OIL LEAKS (EXTERNAL)
      INTERNAL ENGINE DAMAGE
      CRANKCASE BREATHER AND TUBE
      DRAIN THE OIL PAN
      FILL THE OIL PAN
      OIL FILTERS (FULL FLOW AND BYPASS)
      OIL FILTER HEAD
      OIL PAN
      OIL TRANSFER TUBE
      HIGH OIL PRESSURE REGULATOR
      MAIN OIL PRESSURE REGULATOR
      DIPSTICK
      DIPSTICK TUBE AND HOUSING
      OIL COOLER
      OIL PUMP
   SECTION 3 - COMBUSTION AIR SYSTEM
      COMBUSTION AIR SYSTEM
      GENERAL INFORMATION
      COMBUSTION AIR SYSTEM SPECIFICATIONS
      COMBUSTION AIR SYSTEM FLOW DIAGRAMS
      TURBOCHARGER TURBINE SEAL LEAKS
      CORRECT TURBOCHARGER INSTALLED
      INTAKE AIR RESTRICTION
      EXHAUST AIR RESTRICTION
      AIR LEAKS
      TURBOCHARGER BLADE DAMAGE
      TURBOCHARGER AXIAL AND RADIAL CLEARANCE
      TURBOCHARGER
   SECTION 4 - COMPRESSED AIR SYSTEM
      COMPRESSED AIR SYSTEM
      GENERAL INFORMATION
      COMPRESSED AIR SYSTEM SPECIFICATIONS
      COMPRESSED AIR SYSTEM FLOW DIAGRAM
      CARBON BUILDUP, AIR COMPRESSOR
      GASKET LEAKS, AIR COMPRESSOR
      AIR GOVERNOR AND COMPRESSOR UNLOADER VALVE
      AIR GOVERNOR
      UNLOADER VALVE
      AIR COMPRESSOR, CYLINDER HEAD
      AIR COMPRESSOR
   SECTION 5 - FUEL SYSTEM
      FUEL SYSTEM
      FUEL SYSTEM SPECIFICATIONS
      FUEL SYSTEM FLOW DIAGRAMS
      PROPER USE OF FUEL SYSTEM GAUGES
      FUEL
      INJECTORS
      FUEL PUMP
      FUEL SYSTEM MAINTENANCE

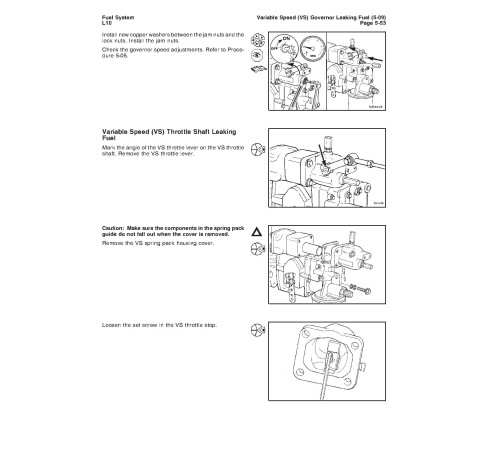

      VARIABLE SPEED (VS) GOVERNOR LEAKING FUEL
      FUEL SHUTOFF VALVE
      FUEL PUMP
      AIR LEAKS
      CYLINDER MISFIRE
      ENGINE OIL DILUTION BY FUEL OIL
      FUEL LINE RESTRICTION
      FUEL CONSUMPTION CHECK
      LOW POWER CHECK
      THROTTLE RESPONSE TIME BY ROAD TEST
      ENGINE STALL SPEED AND TIME CHECK
      STALL SPEED CHECK LIST
      DRIVEABILITY
      ENGINE FACTORS (USE DYNAMOMETER SHEET INCLUDED BELOW)
      FUEL CONSUMPTION CHECK LIST
   SECTION 6 - ELECTRICAL SYSTEM
      ELECTRICAL SYSTEM
      GENERAL INFORMATION
      ELECTRICAL SYSTEM SPECIFICATIONS
      CRANKSHAFT ROTATION
      BATTERIES
      BATTERY TERMINAL CONNECTIONS
      STARTING CIRCUIT
      ALTERNATOR BELT
      ALTERNATOR
      STARTING MOTOR
   SECTION 7 - BASE ENGINE COMPONENTS
      BASE ENGINE COMPONENTS
      GENERAL INFORMATION
      ROCKER LEVER COVER
      AFTERCOOLER
      ROCKER LEVERS
      ROCKER LEVER HOUSING
      PUSH RODS
      EXHAUST MANIFOLD
      CYLINDER HEAD
      CAM FOLLOWERS
      PISTON COOLING NOZZLES
      PISTONS AND RINGS
      CONNECTING RODS
      CYLINDER LINERS
      CONNECTING ROD BEARINGS
      MAIN AND THRUST BEARINGS
      ACCESSORY DRIVE PULLEY
      ALTERNATOR DRIVE PULLEY
      CRANKSHAFT PULLEY
      SEALS, FRONT AND REAR CRANKSHAFT
      SEAL, ALTERNATOR DRIVE
      SEAL, ACCESSORY DRIVE
      SEAL, FAN CLUTCH
      GEAR COVER
      VIBRATION DAMPER
      CAMSHAFT GEAR
      CAMSHAFT
      CRANKSHAFT GEAR
      CAMSHAFT BUSHINGS
      IDLER GEARS
      OIL TRANSFER TUBE (ACCESSORY DRIVE)
      GEAR SUPPORT PLATE
      ACCESSORY DRIVE
      ACCESSORY DRIVE FRONT SUPPORT
      HYDRAULIC PUMP DRIVE
      FLYWHEEL ASSEMBLY
      FLYWHEEL HOUSING
      FRONT ENGINE SUPPORT
      ENGINE LIFTING BRACKETS
      INJECTION TIMING
      CROSSHEADS, VALVES AND INJECTORS
      JACOBS ENGINE BRAKE
      PIPE PLUGS AND CUP PLUGS
   SECTION 8 - ENGINE TESTING ("IN-CHASSIS")
      ENGINE TESTING ("IN-CHASSIS)
      *GENERAL ENGINE TEST SPECIFICATIONS AND PROCEDURES
      GENERAL ENGINE TEST PROCEDURES
      CHASSIS DYNAMOMETER OPERATION
      ENGINE RUN-IN PROCEDURE (CHASSIS DYNAMOMETER)
      ENGINE RUN-IN PROCEDURE "IN-CHASSIS" (ON AND OFF-HIGHWAY VEHICLES
      ENGINE CONFIGURATIONS AND MODELS
   SECTION 9 - ENGINE - REMOVE AND INSTALL
      ENGINE
      GENERAL INFORMATION
      ENGINE MOUNTS
   SECTION 10 - ENGINE COMPONENT SPECIFICATIONS
      GENERAL INFORMATION
      CONVERSION FACTORS
      CAPSCREW MARKINGS AND TORQUE VALUES
      PIPE PLUG TORQUE VALUES
      CAPSCREW USAGE INFORMATION
      DECIMAL AND METRIC EQUIVALENTS
      BELT TENSION SPECIFICATIONS
      COOLING SYSTEM SPECIFICATIONS
      LUBRICATING OIL SYSTEM SPECIFICATIONS
      COMBUSTION AIR SYSTEM SPECIFICATIONS
      COMPRESSED AIR SYSTEM SPECIFICATIONS
      FUEL SYSTEM SPECIFICATIONS
      ELECTRICAL SYSTEM SPECIFICATIONS
      BASE ENGINE COMPONENT SPECIFICATIONS
      INDEX
      SECTION 12 - SERVICE LITERATURE
      SECTION 13 - COMPONENT MANUFACTURERS
