Komatsu SA6D140E-3 (SN from 112731) Diesel Engines Parts Catalog (FEN01136-01)

Illustrated factory Parts Catalog for Komatsu Diesel Engines Models SA6D140E-3.

This manual will assist you in finding spare parts for your diesel engine.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   SA6D140E-3 (SN: 112731-)

Format: PDF, 120 pages
Language: English
Table of Contents:
   AA [ENGINE]
      CYLINDER HEAD (#110150-)
      HEAD COVER
      HEAT SHIELD AND HEAD COVER BOLT (#110288-) .
      AIR INTAKE MANIFOLD AND AFTER
      COOLER (#110288-)
      AFTER COOLER WATER PIPING (#110288-)
      AIR CLEANER (#112731-)

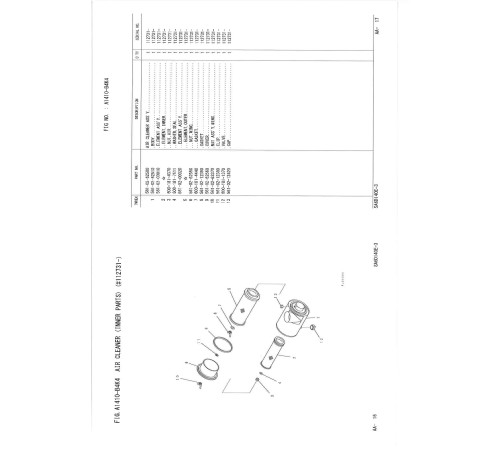

      AIR CLEANER (INNER PARTS) (#112731-)
      AIR CLEANER CAP (HOOD TYPE) (#110288-)
      EXHAUST MAN I FOLD (#110288-)
      TURBOCHARGER AND OIL PIPING (#1 10288-)
      TURBOCHARGER (KTR1 10L-464E) (INNER PARTS) (#110288-)
      HEAT SHI ELD (#112731-)
      EXHAUST CONNECT I ON (#110288-)
      CYLINDER BLOCK
      CYLINDER BLOCK COVER AND UNDER FLAME (#110288-)
      FRONT COVER (#110014-)
      FRONT COVER MOUNTING AND BREATHER (#110288-) .
      IDLER GEAR
      CAMFOLLOWER COVER (#110001-118378)
      CAMFOLLOWER COVER (#118379-)
      OIL FILLER (#110288-)
      OIL PRESSURE SWITCH (FOR A-CONTACT) (#110288-)
      OIL PRESSURE SWITCH (#1 12731-)
      OIL PAN AND SUCTION TUBE (#112731-)
      OIL LEVEL GAUGE (#112731-)
      OIL PAN PLUG (#110288-)
      FLYWHEEL HOUSING (#110288-)
      FLYWHEEL HOUSING (WITH REVOLUTION SENSOR) (#112731-)
      FLYWHEEL (WITH PILOT BEARING) (#110288-)
      ENGINE MOUNTING (#1 10288-110353)
      ENGINE MOUNTING (#110354-)
      CRANKSHAFT
      VIBRATION DAMPER (#110288-)
      PISTON
      CRANK PULLEY (#110288-)
      CAMSHAFT

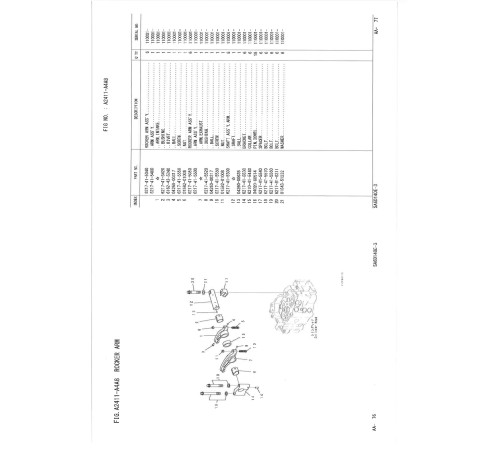

      ROCKER ARM
      CAMFOLLOWER
      TACHOMETER DRIVE (#110288-)
      OIL PUMP
      OIL FILTER (#110288-)
      OIL COOLER
      BLOCK PLUG (#1 10288-)
      FUEL SUPPLY PUMP AND COMMON RAIL (#1 1 2731-) .
      FUEL PUMP SUPPLY AND RETURN PIPING (#112731-) .
      FUEL SUPPLY PUMP (PUMP) (INNER PARTS) (#112731-)
      FUEL SUPPLY PUMP (FEED PUMP) (INNER PARTS) (#112731-)
      COMMON RAIL (INNER PARTS) (#112731-)
      FUEL SUPPLY PUMP BRACKET AND CONNECTION
      COVER (#110354-)
      FUEL PIPING (#110354-)
      FUEL SUPPLY PUMP LUBR I CATOR (#1 10003-)
      FUEL FILTER (THREAD 1-1/4) (#112731-)
      FUEL INLET AND OVER FLOW (2-EYE JOINT TYPE) (#110288-)
      FUEL INLET AND OVER FLOW (HOSE WSERT TYPE) (#114572-)
      FUEL INJECTOR
      FUEL RETURN (#112731-)
      FUEL CONTROL (CONTROLLER AND CONNECTOR)
      (CHASSIS MOUNT) (#110288-)
      WATER PUMP (#110288-)
      THERMOSTAT AND AIR VENT (#110288-)
      COOLING FAN (#112731-)
      FAN PULLEY AND V-BELT (#112731-)
      FAN DRIVE AND TENSION (#110288-)

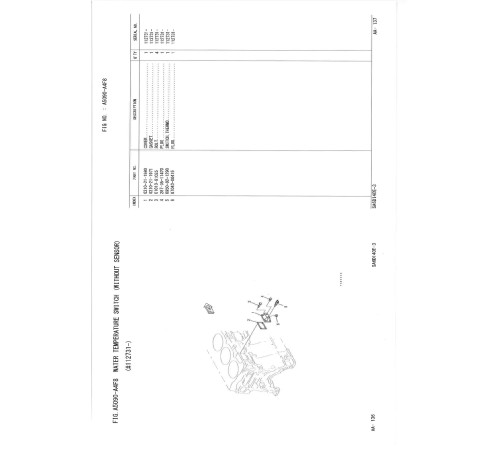

      WATER TEMPERATURE SWITCH (WITHOUT SENSOR) (#112731-)
      CORROS I ON RES I STOR (#1 10288-)
      ALTERNATOR MOUNTING (35A) (#110288-)
      ALTERNATOR (35A) (INNER PARTS) (#110238-)
      STARTING MOTOR MOUNTING (7. 5KW) (#110288-)
      STARTING MOTOR (7. 5KW) (INNER PARTS) (#110505-)
      WIRING (1/3) SWITCH AND HEATER (#110283-)
      WIRING (2/3) FUEL INJECTOR (#110288-)
      WIRING (3/3) SENSOR (#110288-)
      TOOL (#110288-)
      STARTING AID (HEATER SIGNAL) (#110288-)
      EXHAUST RELATED PARTS (GASKET) (#110288-)
      RADIATOR (#112731-)
      EMERGENCY SWITCH (#110288-)
      STARTING SWITCH (#110288-)
      HARNESS CONNECTOR AND TERMINAL CAP (#112731-) .
      NAME PLATE AND CAUTION PLATE (#112731-).
      PRE-FILTER AND RELATED PARTS (#115900-) ....
   ZZ [NUMER I CAL INDEX]
