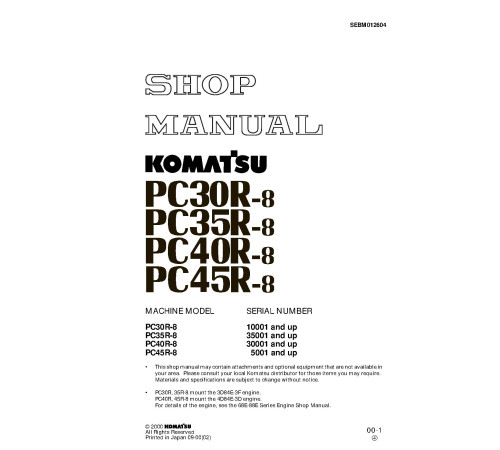

Komatsu PC30R-8(SN:10001-), PC35R-8(SN:35001-), PC40R-8(SN:30001-), PC45R-8(SN:05001-) Crawler Excavators Shop Manual (SEBD012604)

Illustrated factory Workshop Manual for Komatsu Crawler Excavators Models PC30R-8, PC35R-8, PC40R-8 and PC45R-8.

This manual will assist you in diagnosing, repairing, and adjusting for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   PC30R-8 (SN: 10001-)
   PC35R-8 (SN: 35001-)
   PC40R-8 (SN: 30001-)
   PC45R-8 (SN: 05001-)

Format: PDF, 588 pages
Language: English
Table of Contents:
   FOREWARD
      SAFETY
      FOREWARD
      HOW TO READ THE SHOP MANUAL
      HOISTING INSTRUCTIONS
      METHOD OF DISASSEMBLING, CONNECTING PUSH-PULL TYPE COUPLER
      COATING MATERIALS
      STANDARD TIGHTENING TORQUE
      ELECTRIC WIRE CODE
      CONVERSION TABLE
      UNITS
   GENERAL
      GENERAL ASSEMBLY DRAWING
      SPECIFICATIONS
      WEIGHT TABLE
      LIST OF LUBRICANT AND WATER
   STRUCTURE AND FUNCTION
      PTO (COUPLING)
      RADIATOR, OIL COOLER
      ENGINE CONTROL
      POWER TRAIN
      SWING CIRCLE
      SWING MACHINERY
      TRACK FRAME, RECOIL SPRING
      HYDRAULIC PIPING
      HYDRAULIC CIRCUIT DIAGRAM
      HYDRAULIC PUMP
      CENTER SWIVEL JOINT
      SWING MOTOR
      TRAVEL MOTOR
      SPOOL CONTROL VALVE
      CLSS
      MULTI-CONTROL VALVE
      ELECTRICAL WIRING DIAGRAM
      VALVE CONTROL
      WORK EQUIPMENT, SWING PPC VALVE
      SOLENOID VALVE
      WORK EQUIPMENT
      MACHINE MONITOR SYSTEM
      ELECTRICAL CIRCUIT DIAGRAM
      HYDRAULIC CYLINDER
   TESTING AND ADJUSTING

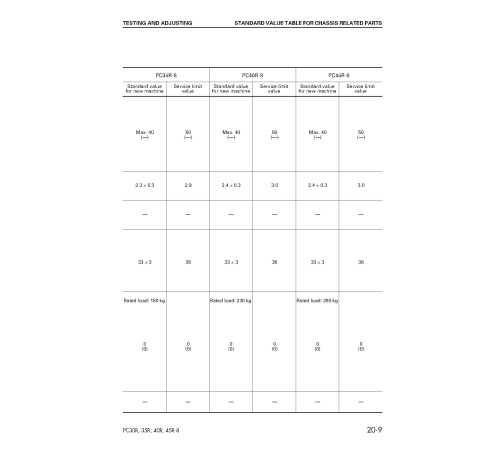

      STANDARD VALUE TABLE
      TESTING AND ADJUSTING
      TROUBLESHOOTING
   DISASSEMBLY AND ASSEMBLY
      METHOD OF USING MANUAL
      PRECAUTIONS WHEN CARRYING OUT OPERATION
      SPECIAL TOOL LIST
      SKETCHES OF SPECIAL TOOLS
      STARTING MOTOR (REMOVAL, INSTALLATION)
      ALTERNATOR (REMOVAL, INSTALLATION)
      FUEL INJECTION PUMP (REMOVAL)
      FUEL INJECTION PUMP (INSTALLATION)
      NOZZEL HOLDER (REMOVAL, INSTALLATION)
      WATER PUMP (REMOVAL)
      WATER PUMP (INSTALLATION)

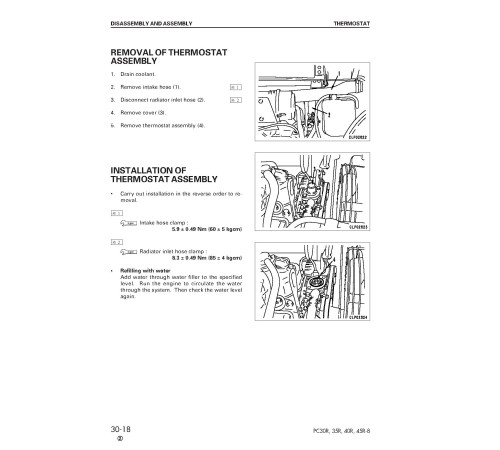

      THERMOSTAT (REMOVAL, INSTALLATION)
      ENGINE FRONT SEAL (REMOVAL, INSTALLATION)
      ENGINE REAR SEAL (REMOVAL)
      ENGINE REAR SEAL (INSTALLATION)
      CYLINDER HEAD (REMOVAL)
      CYLINDER HEAD (INSTALLATION)
      RADIATOR, HYDRAULIC COOLER (REMOVAL
      RADIATOR, HYDRAULIC COOLER (INSTALLATION)
      ENGINE, HYDRAULIC PUMP (REMOVAL)
      ENGINE, HYDRAULIC PUMP (INSTALLATION)
      FUEL TANK (REMOVAL, INSTALLATION)
      DAMPER (REMOVAL, INSTALLATION)
      CENTER SWIVEL JOINT (REMOVAL, INSTALLATION)
      CENTER SWIVEL JOINT (DISASSEMBLY, ASSEMBLY)
      TRAVEL MOTOR (REMOVAL, INSTALLATION)
      PHV-300 (FOR PC30R-8) DISASSEMBLY AND ASSEMBLY OF TRAVEL MOTOR
      PHV-350 (FOR PC35R-8) DISASSEMBLY AND ASSEMBLY OF TRAVEL MOTOR
      PHV-500 (FOR PC40R-8) DISASSEMBLY AND ASSEMBLY OF TRAVEL MOTOR
      GM06VL (FOR PC45R-8) DISASSEMBLY AND ASSEMBLY OF TRAVEL MOTOR
      SPROCKET (REMOVAL, INSTALLATION)
      SWING MOTOR, SWING MACHINERY (REMOVAL)
      SWING MOTOR, SWING MACHINERY (INSTALLATION)

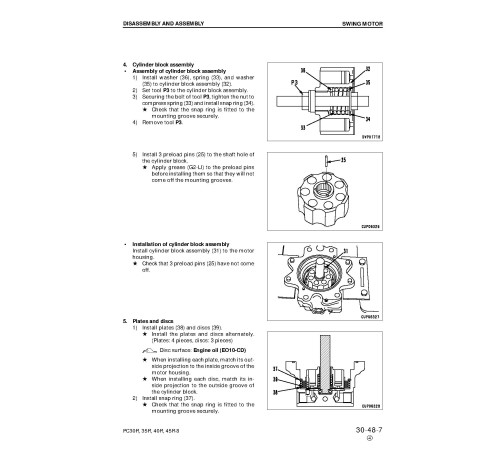

      SWING MOTOR, SWING MACHINERY (DISASSEMBLY)
      SWING MOTOR, SWING MACHINERY (ASSEMBLY)
      DISASSEMBLY SWING MOTOR ASSEMBLY LMF 16AB
      ASSEMBLY SWING MOTOR ASSEMBLY LMF 16AB
      REVOLVING FRAME (REMOVAL)
      REVOLVING FRAME (INSTALLATION)
      SWING CIRCLE (REMOVAL, INSTALLATION)
      IDLER (REMOVAL, INSTALLATION)
      IDLER (DISASSEMBLY)
      IDLER (ASSEMBLY)
      RECOIL SPRING (REMOVAL, INSTALLATION)
      RECOIL SPRING (DISASSEMBLY)
      RECOIL SPRING (ASSEMBLY)
      TRACK ROLLER (REMOVAL, INSTALLATION)
      TRACK ROLLER (DISASSEMBLY)
      TRACK ROLLER (ASSEMBLY)
      CARRIER ROLLER (REMOVAL, INSTALLATON)
      CARRIER ROLLER (DISASSEMBLY, ASSEMBLY)
      RUBBER SHOE (REMOVAL, INSTALLATION)
      STEEL SHOE (REMOVAL, INSTALLATION)
      HYDRAULIC TANK (REMOVAL, INSTALLATION)
      HYDRAULIC COOLER (REMOVAL, INSTALLATION)
      HYDRAULIC PUMP (REMOVAL, INSTALLATION)
      DISASSEMBLY OF MAIN PUMP ASSEMBLY (LPV 45)
      ASSEMBLY OF MAIN PUMP ASSEMBLY (LPV 45)
      CONTROL VALVE (REMOVAL)
      CONTROL VALVE (INSTALLATION)
      CONTROL VALVE (DISASSEMBLY)
      CONTROL VALVE (ASSEMBLY)
      SPOOL SOLENOID VALVE (REMOVAL, INSTALLATION)
      LEFT PPC VALVE (REMOVAL, INSTALLATION)
      RIGHT PPC VALVE (REMOVAL, INSTALLATION)
      PPC VALVE (DISASSEMBLY)
      PPC VALVE (ASSEMBLY)
      BOOM CYLINDER (REMOVAL)
      BOOM CYLINDER (INSTALLATION)
      ARM CYLINDER (REMOVAL)
      ARM CYLINDER (INSTALLATION)
      BUCKET CYLINDER (REMOVAL)
      BUCKET CYLINDER (INSTALLATION)
      BOOM SWING CYLINDER (REMOVAL)
      BOOM SWING CYLINDER (INSTALLATION)
      BLADE CYLINDER (REMOVAL)
      BLADE CYLINDER (INSTALLATION)
      HYDRAULIC CYLINDER (DISASSEMBLY)
      HYDRAULIC CYLINDER (ASSEMBLY)
      WORK EQUIPMENT (REMOVAL)
      WORK EQUIPMENT (INSTALLATION)
      BUCKET (REMOVAL, INSTALLATION)
      ARM (REMOVAL)
      ARM (INSTALLATION)
      BUCKET, ARM (REMOVAL)
      BUCKET, ARM (INSTALLATION)
      BOOM (REMOVAL)
      BOOM (INSTALLATION)
      BOOM SWING BRACKET (REMOVAL)
      BOOM SWING BRACKET (INSTALLATION)
      BLADE (REMOVAL)
      BLADE (INSTALLATION)
      OPERATOR`S CAB (REMOVAL, INSTALLATION)
      CANOPY (REMOVAL, INSTALLATION)
      FLOOR FRAME (REMOVAL, INSTALLATION)
   MAINTENANCE STANDARD
      SWING CIRCLE
      SWING MACHINERY
      SPROCKET
      TRACK FRAME, RECOIL SPRING
      IDLER
      TRACK ROLLER
      CARRIER ROLLER
      TRACK SHOE
      CENTER SWIVEL JOINT
      HYDRAULIC PUMP
      WORK EQUIPMENT, SWING PPC VALVE
      SWING MOTOR
      SPOOL CONTROL VALVE
      HYDRAULIC CYLINDER
      WORK EQUIPMENT
   OTHER
      HYDRAULIC CIRCUIT DIAGRAM PC30R-8
      HYDRAULIC CIRCUIT DIAGRAM PC35R-8
      HYDRAULIC CIRCUIT DIAGRAM PC40R-8
      HYDRAULIC CIRCUIT DIAGRAM PC45R-8
      ELECTRICAL CIRCUIT DIAGRAM
      HYDRAULIC PIPING DRAWING
      SYSTEM DIAGRAM DRAWING
