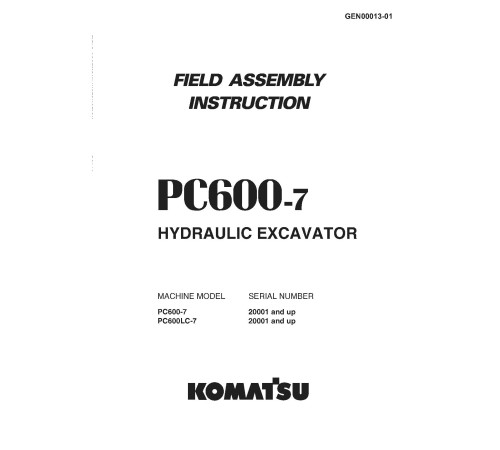

Komatsu PC600-7 and PC600LC-7 (SN from 20001) Crawler Excavators (Japan) Field Assembly Manual (GEN00013-01)

Illustrated factory Field Assembly Manual for Komatsu Crawler Excavators Models PC600-7 and PC600LC-7.

This manual will assist you in for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   PC600-7 (SN: 20001-)
   PC600LC-7 (SN: 20001-)

Format: PDF, 87 pages
Language: English
Table of Contents:
   FOREWORD
   SPECIFICATIONS
   FIELD ASSEMBLING
   ASSEMBLING PROCEDURES, APPLICABLE EQUIPMENT AND SCHEDULE
   TRANSPORTATION
   PACKING STYLE FOR TRANSPORTATION
   LIST OF TOOLS FOR FIELD ASSEMBLING
   STANDARD TIGHTENING TORQUE
   A. ASSEMBLY OF BASE MACHINE
      A-1. INSTALLATION OF LEFT AND RIGHT TRACK FRAMES

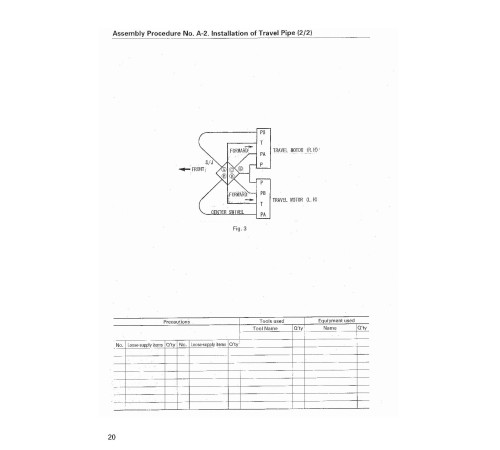

      A-2. INSTALLATION OF TRAVEL PIPE
      A-3. INSTALLATION OF TOP GUARD
      A-4. INSTALLATION OF REARVIEW MIRROR
      A-5. INSTALLATION OF HANDRAIL
      A-6. INSTALLATION OF STEP
      A-7. INSTALLATION OF LEFT SIDE STEP
      A-8. STICKING SEAT TO COUNTERWEIGHT
      A-9. REMOVAL OF MUFFLER TAIL PIPE
      A-10. INSTALLATION OF COUNTERWEIGHT
      A-11. INSTALLATION OF MUFFLER TAIL PIPE
      A-12. INSTALLATION OF ORBCOMM ANTENNA (IF EQUIPPED)
      A-13. INSTALLATION OF STEP LIGHT
      A-14. EXTENSION OF TRACK FRAME GAUGE
      A-15. INSTALLATION OF TRAVEL PIPING COVER

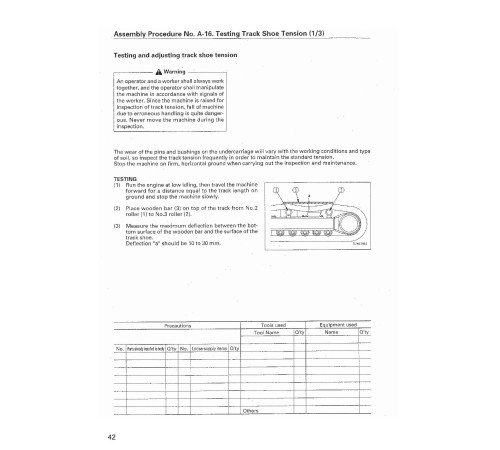

      A-16. TESTING TRACK SHOE TENSION
      A-17. INSPECTION OF OIL AMOUNT AND WATER AMOUNT
      A-18. PARTS TO BE TOUCHED UP AFTER FIELD ASSEMBLY
   B. ASSEMBLING OF WORK EQUIPMENT
      B-1. ASSEMBLY OF BOOM FOOT PIN, BOOM CYLINDER FOOT PIN
      B-2. ASSEMBLY OF BOOM ASSEMBLY
      B-3. INSTALLATION OF BOOM CYLINDER FOOT
      B-4. INSTALLATION OF BOOM CYLINDER HOSES
      B-5. INSTALLATION OF HOSES FROM CHASSIS ALONG TOP OF BOOM
      B-6. ASSEMBLY OF BOOM CYLINDER
      B-7. ASSEMBLY OF ARM CYLINDER
      B-8. INSTALLATION OF ARM CYLINDER HOSES
      B-9. INSTALLATION OF ARM ASSEMBLY
      B-10. INSTALLATION OF BUCKET CYLINDER HOSES BETWEEN BOOM AND BUCKET CYLINDER
      B-11. INSTALLATION OF BUCKET
      B-12. CONNECTION OF WORK EQUIPMENT GREASE PIPING

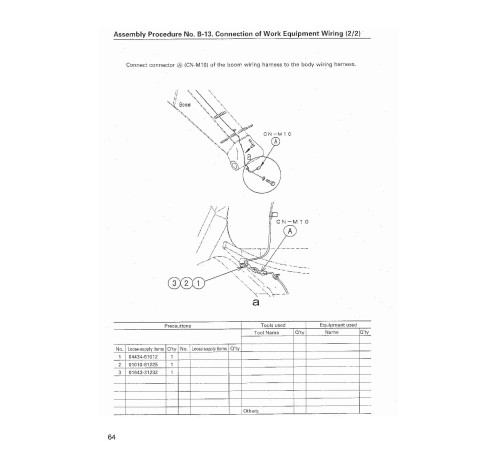

      B-13. CONNECTION OF WORK EQUIPMENT WIRING
      B-14. GREASING AFTER ASSEMBLING WORK EQUIPMENT
   M. PROCEDURE FOR INSPECTION AND MAINTENANCE AFTER COMPLETION OF ASSEMBLY
      M-1. INSPECTION OF OIL LEVEL IN HYDRAULIC TANK AND REFILL
      M-2. REPLACEMENT OF RETURN FILTER (STANDARD FILTER TO FLUSHING FILTER)
      M-3. FLUSHING OF HYDRAULIC CIRCUIT
   FIELD ASSEMBLY INSPECTION REPORT (BACKHOE)
