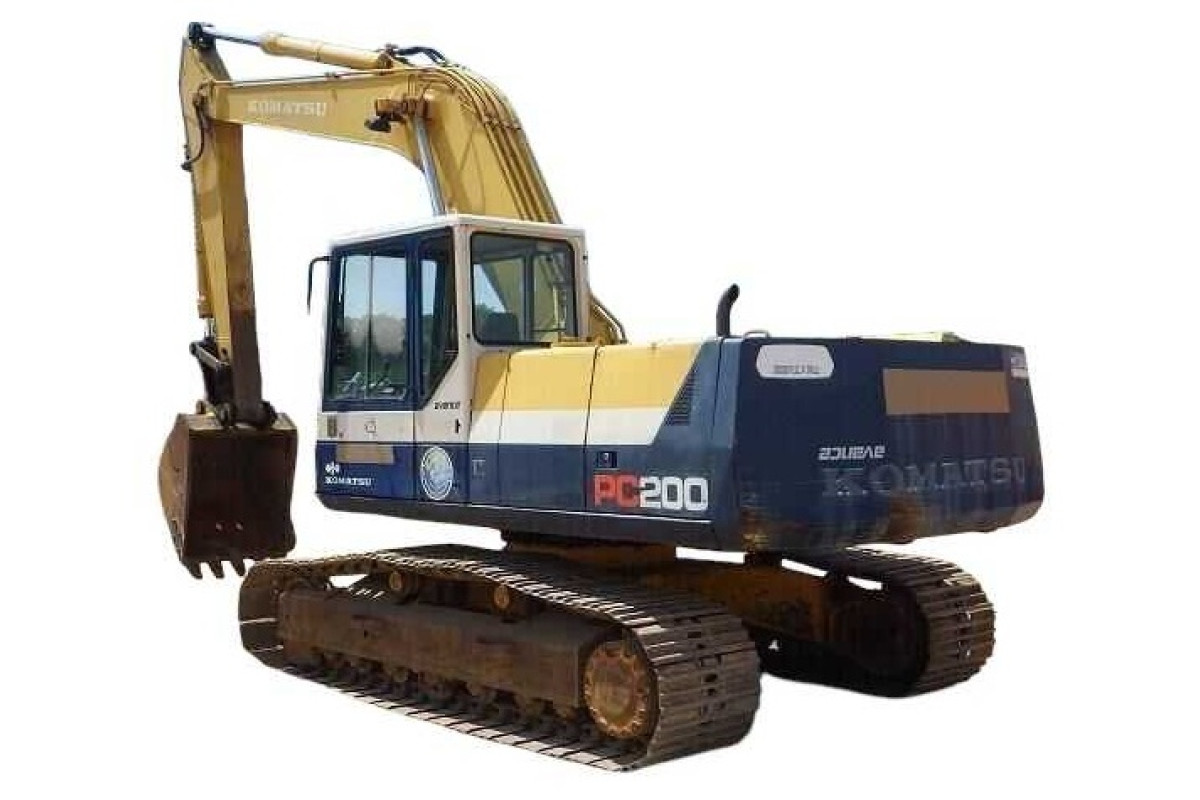

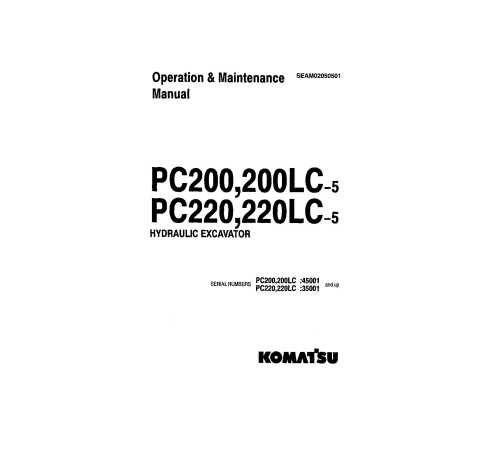

Komatsu PC200-5, PC200LC-5, PC220-5 and PC220LC-5 Crawler Excavators (Japan) Operate and Maintenance manual (SEAD02050501)

Illustrated factory Operate and Maintenance manual for Komatsu Crawler Excavators Models PC200-5, PC200LC-5, PC220-5 and PC220LC-5.

This manual will assist you in operating, and maintaining for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   PC200-5 (SN: 45001-58018)
   PC200LC-5 (SN: 45001-58018)
   PC220-5 (SN: 35001-36613)
   PC220LC-5 (SN: 35001-36613)

Format: PDF, 237 pages
Language: English
Table of Contents:
   OPERATION
      GENERAL LOCATIONS AND SPECIFICATIONS
      INSTRUMENTS AND CONTROLS
      METHOD OF USING MODE SELECTOR SWITCHES

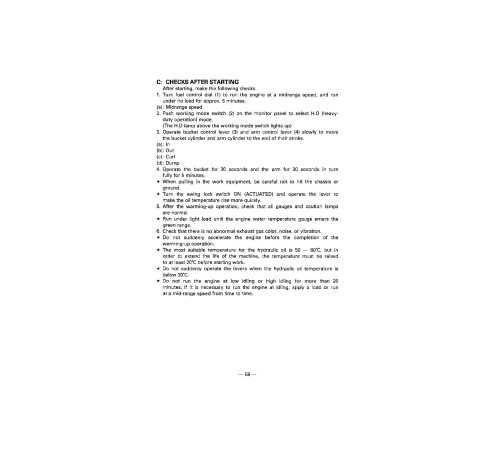

      CHECK BEFORE STARTING
      OPERATING YOUR MACHINE
      INVERSION AND REPLACEMENT OF BUCKET
      HANDLING THE TRAPEZOIDAL BUCKET
      USING THE EXTENSION ARM
      HANDLING THE CLAMSHELL BUCKET
      SELECTION OF TRACK SHOES
      SELECTION OF BUCKET TEETH
      INSTALLATION OF OPTIONAL ELECTRICAL EQUIPMENT
      COLD WEATHER OPERATION
   MAINTENANCE
      PERIODIC MAINTENANCE
      ADJUSTMENT
      TROUBLE SHOOTING GUIDE
      SERVICE METER
      MACHINE AND ENGINE SERIAL NUMBERS

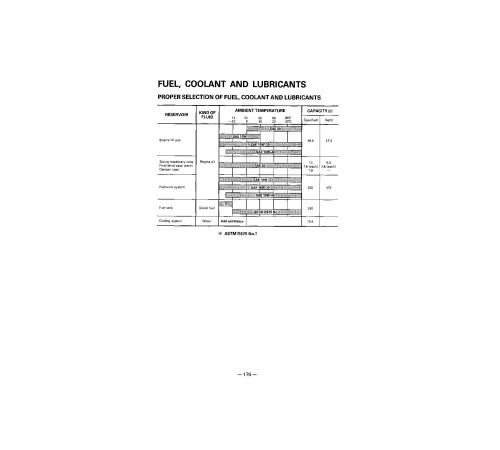

      FUEL, COOLANT AND LUBRICANTS
   SAFETY AND, OPERATION
      SAFETY HINTS
      RADIO
      LOCKING CAP
      OPERATING THE CAR COOLER
      OPERATING THE AIR CONDITIONER
      EXCAVATOR’S WORK
      HANDLING OF BATTERY
      TRANSPORTATION
      PRECAUTIONS FOR MAINTENANCE
      STORAGE
      COOLANT AND LUBRICANTS
