Komatsu PC600-6 and PC600LC-6 (SN: 10001-11000) Crawler Excavators (Japan) Field Assembly Manual (SEAWD01700)

Illustrated factory Field Assembly Manual for Komatsu Crawler Excavators Models PC600-6 and PC600LC-6.

This manual will assist you in for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   PC600-6 (SN: 10001-11000)
   PC600LC-6 (SN: 10001-11000)

Format: PDF, 55 pages
Language: English
Table of Contents:
   ASSEMBLING PROCEDURES, APPLICABLE EQUIPMENT AND SCHEDULE
   TRANSPORTATION
   PACKING STYLE FOR TRANSPORTATION
   STEPS TO TAKE BEFORE AND AFTER ASSEMBLY
   TIGHTENING TORQUE
   INSTALLATION OF FOG
   INSTALLATION OF REARVIEW MIRROR
   INSTALLATION OF REARVIEW MIRROR
   INSTALLATION OF HANDRAIL
   INSTALLATION OF STEP
   INSTALLATION OF LEFT SIDE STEP
   INSTALLATION OF DECK GUARD
   STICKING SEAT TO COUNTERWEIGHT
   REMOVAL OF MUFFLER TAIL PIPE
   INSTALLATION OF COUNTERWEIGHT

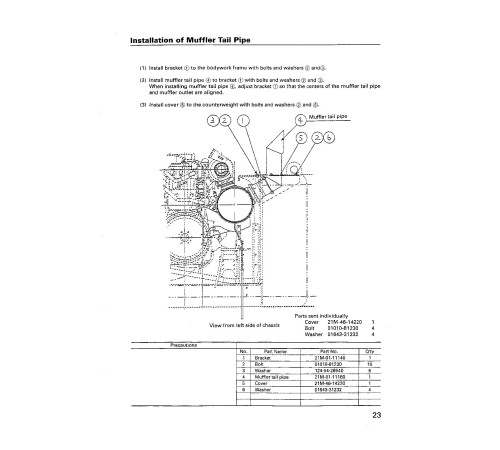

   INSTALLATION OF MUFFLER TAIL PIPE
   INSTALLATION OF RADIO ANTENNA
   INSTALLATION OF LIGHT ON TOP OF CAB
   EXTENSION AND RETRACTION OF TRACK FRAME GUAGE
   INSTALLATION OF TRAVEL PIPING COVER
   BOOM FOOT PIN, BOOM CYLINDER FOOT PIN

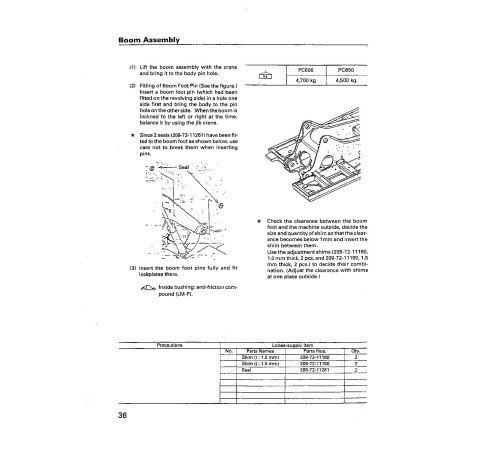

   BOOM ASSEMBLY
   INSTALLATION OF BOOM CYLINDER FOOT
   INSTALLATION OF BOOM CYLINDER HOSES
   INSTALLATION OF HOSES FROM CHASSIS ALONG TOP OF BOOM
   BOOM CYLINDER
   ARM CYLINDER
   INSTALLATION OF ARM CYLINDER HOSES
   INSTALLATION OF ARM ASSEMBLY
   INSTALLATION OF BUCKET CYLINDER HOSES BETWEEN BOOM AND BUCKET CYLINDER
   WORK EQUIPMENT PIPING FOR BUCKET CYLINDER BETWEEN BOOM AND BUCKET CYLINDER
   WORK EQUIPMENT GREASE PIPING
   WORK EQUIPMENT WIRING
