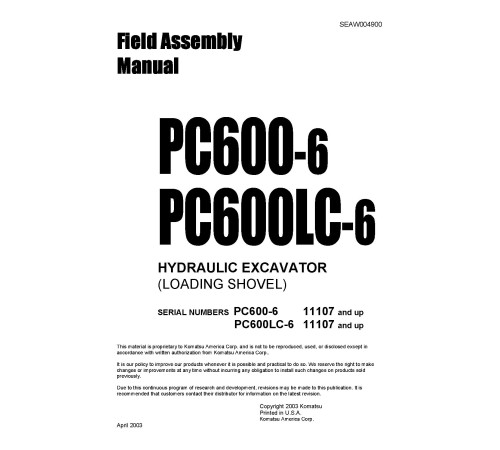

Komatsu PC600-6 and PC600LC-6 (SN from 11107) Crawler Excavators (Japan) Field Assembly Manual (SEAWD04900)

Illustrated factory Field Assembly Manual for Komatsu Crawler Excavators Models PC600-6 and PC600LC-6.

This manual will assist you in for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   PC600-6 (SN: 11107-)
   PC600LC-6 (SN: 11107-)

Format: PDF, 49 pages
Language: English
Table of Contents:
   RELEASING RESIDUAL PRESSURE IN HYDRAULIC CIRCUIT
   PULLING OUT BOOM FOOT PIN AND BOOM CYLINDER FOOT PIN
   INSTALLATION OF BOOM AND ARM ASSEMBLY
   INSTALLATION OF BOOM CYLINDER
   INSTALLATION OF BOOM CYLINDER FOOT
   INSTALLATION OF BOOM CYLINDER HOSES
   INSTALLATION OF BOOM CYLINDER ROD PIN
   INSTALLATION OF ARM CYLINDER HOSES
   INSTALLATION OF BUCKET CYLINDER
   INSTALLATION OF BUCKET CYLINDER HOSE

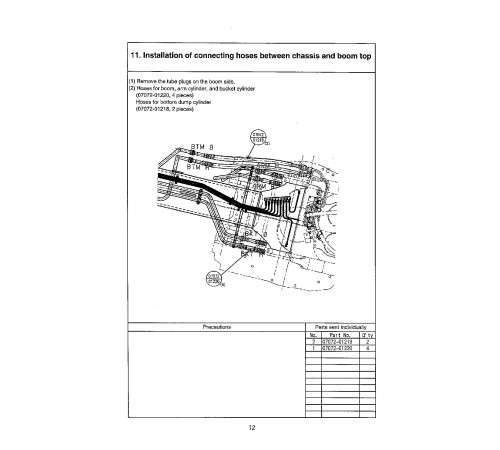

   INSTALLATION OF CONNECTING HOSES BETWEEN CHASSIS AND BOOM TOP
   INSTALLATION OF BOTTOM DUMP CYLINDER HOSES
   INSTALLATION OF BUCKET ASSEMBLY (1/2)
   INSTALLATION OF BUCKET ASSEMBLY (2/2)
   INSTALLATION OF WORKING LAMPS
   INSTALLATION OF WORK EQUIPMENT GREASE PIPING
   GREASING AFTER ASSEMBLING OF WORK EQUIPMENT
   BLEEDING AIR FROM WORK EQUIPMENT CIRCUIT
   FLUSHING OF WORK EQUIPMENT PIPING
   CHECKING OIL LEVEL IN HYDRAULIC TANK AND ADDING OIL
   FIELD ASSEMBLY INSPECTION REPORT
