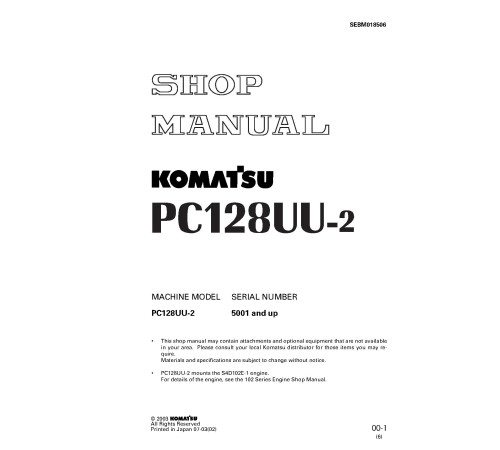

Komatsu PC128UU-2 (SN from 05001) Crawler Excavators (Japan) Workshop Manual (SEBD018506)

Illustrated factory Workshop Manual for Komatsu Crawler Excavators Models PC128UU-2.

This manual will assist you in diagnosing, repairing, and adjusting for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   PC128UU-2 (SN: 05001-)

Format: PDF, 623 pages
Language: English
Table of Contents:
   GENERAL
      GENERAL ASSEMBLY DRAWING
      SPECIFICATIONS
      WEIGHT TABLE
      LIST OF LUBRICANTS AND COOLANT
   STRUCTURE AND FUNCTION
      PTO
      RADIATOR AND OIL COOLER
      POWER TRAIN
      SWING CIRCLE
      SWING MACHINERY
      TRACK FRAME
      IDLER CUSHION
      HYDRAULIC EQUIPMENT LAYOUT DRAWING
      VALVE CONTROL
      HYDRAULIC TANK AND FILTER
      HYDRAULIC PUMP (PISTON PUMP)
      CONTROL VALVE
      SUCTION SAFETY VALVE
      CLSS
      SELF PRESSURE REDUCING VALVE
      CENTER SWIVEL JOINT
      TRAVEL MOTOR
      SWING MOTOR
      SOLENOID VALVE
      EPC SOLENOID VALVE
      PPC ACCUMULATOR

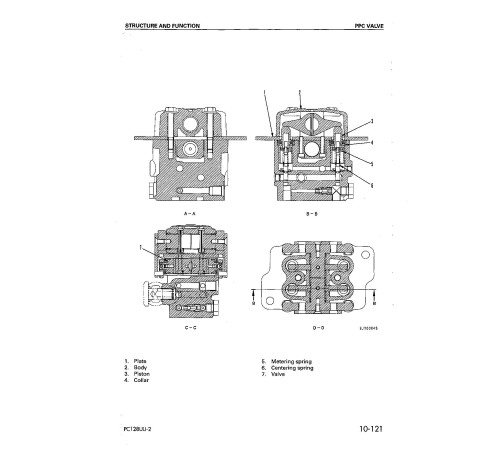

      PPC VALVE
      AIR CONDITIONER PIPING
      ELECTRIC EQUIPMENT LAYOUT DRAWING
      ENGINE CONTROL
      ELECTRIC CONTROL SYSTEM
      SYSTEM
      MONITOR SYSTEM
   TESTING AND ADJUSTING
      STANDARD VALUE TABLE FOR ENGINE
      STANDARD VALUE TABLE FOR CHASSIS
      STANDARD VALUE TABLE FOR ELECTRICAL PARTS
      TESTING AND ADJUSTING

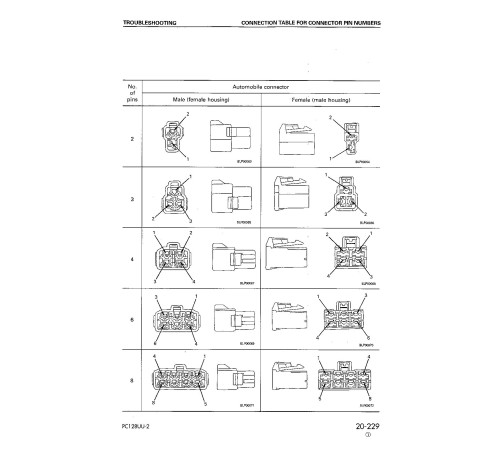

      TROUBLESHOOTING
   DISASSEMBLY AND ASSEMBLY
      METHOD OF USING MANUAL
      PRECAUTIONS WHEN CARRYING OUT OPERATION
      SPECIAL TOOL LIST

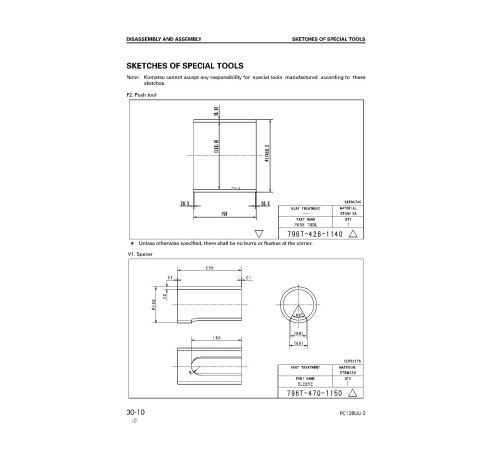

      SKETCHES OF SPECIAL TOOLS
      ENGINE, MAIN PUMP
      RADIATOR, HYDRAULIC OIL COOLER
      FUEL TANK
      CENTER SWIVEL JOINT
      SWING MOTOR, SWING MACHINERY
      SWING MACHINERY
      REVOLVING FRAME
      SWING CIRCLE
      RECOIL SPRING
      IDLER
      TRACK ROLLER
      TRACK SHOE
      HYDRAULIC TANK
      MAIN PUMP
      MAIN CONTROL VALVE
      CONTROL VALVE
      LS SELECT VALVE
      MAIN RELIEF VALVE
      WORK EQUIPMENT PPC VALVE (BOOM, BUCKET, ARM, SWING)
      TRAVEL PPC
      ARM CYLINDER
      OFFSET CYLINDER
      HYDRAULIC CYLINDER
      OFFSET CYLINDER
      WORK EQUIPMENT
      ARM
      SECOND BOOM
      OPERATOR CAB
      FLOOR FRAME
      AIR CONDITIONER COMPRESSOR
      AIR CONDITIONER CAPACITOR
      AIR CONDITIONER UNIT
      COUNTERWEIGHT
   MAINTENANCE STANDARD
      SWING MACHINERY
      SWING CIRCLE
      TRACK FRAME, IDLER CUSHION
      IDLER
      CARRIER ROLLER
      TRACK ROLLER
      SPROCKET
      TRACK SHOE
      HYDRAULIC PUMP
      CONTROL VALVE
      SUCTION SAFETY VALVE
      SELF PRESSURE REDUCTION VALVE
      TRAVEL MOTOR
      SWING MOTOR
      SOLENOID VALVE
      EPC SOLENOID VALVE
      CENTER SWIVEL JOINT
      PPC VALVE
      HYDRAULIC CYLINDER
      WORK EQUIPMENT
      DIMENSION OF WORK EQUIPMENT
   OTHERS
      HYDRAULIC CIRCUIT DIAGRAM
      ELECTRONIC CIRCUIT DIAGRAM (1/2)
      ELECTRONIC CIRCUIT DIAGRAM (2/2)
      AIR CONDITIONER CIRCUIT DIAGRAM
