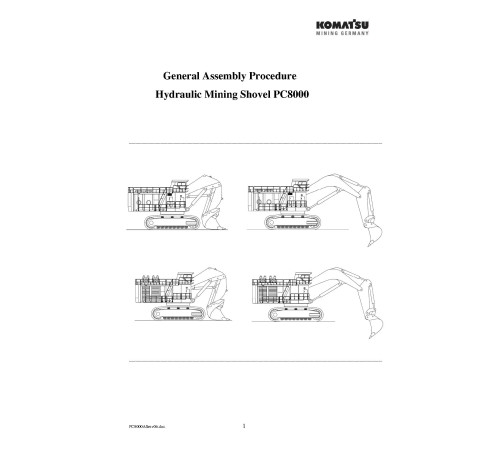

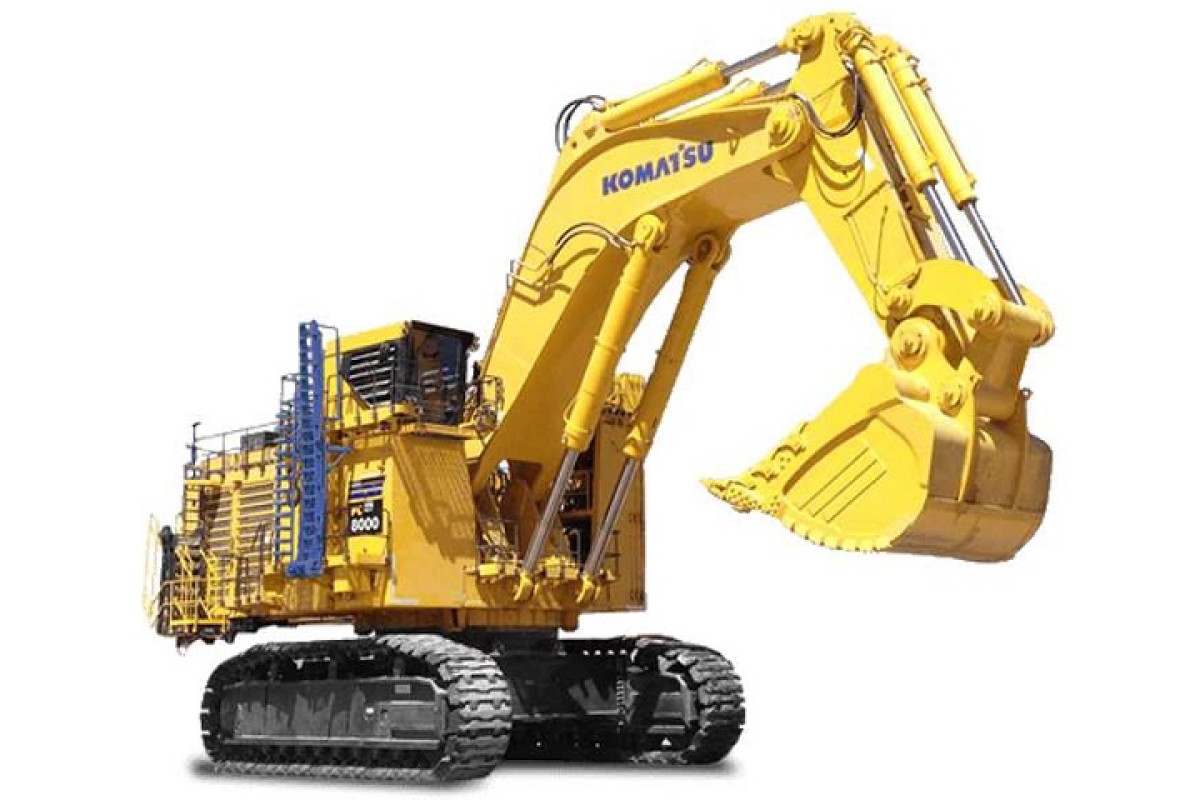

Komatsu PC8000-1 Crawler Excavators (Germany) Field Assembly Manual (FAMPC8000-06)

Illustrated factory Field Assembly Manual for Komatsu Crawler Excavators Models PC8000-1.

This manual will assist you in for your crawler excavator.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Germany):
   PC8000-1

Format: PDF, 158 pages
Language: English
Table of Contents:
   Mounting of Crawler Segments to the Side Frames
   Assembly of Undercarriage
   Assembly of Cable Reel Unit
   Mounting of Final Drives
   Electric drive only: Mounting of auxiliary weight at the undercarriage
   Mounting of Slew Ring underneath the Superstructure Platform
   Assembly of the Superstructure Platform onto the Undercarriage
      Rotary Distributor
   Assembly of the Prime Drive Unit to the Superstructure Platform
      Overview Drive unit
      Electric drive: Direction of motor rotation; mounting the coupling
   Preassembly Boom- and Stick Cylinders to the Boom
      Preassembly Boom- and Stick Cylinders to the Boom (Backhoe attachment)
   Mounting of Boom
   Mounting of Counterweight

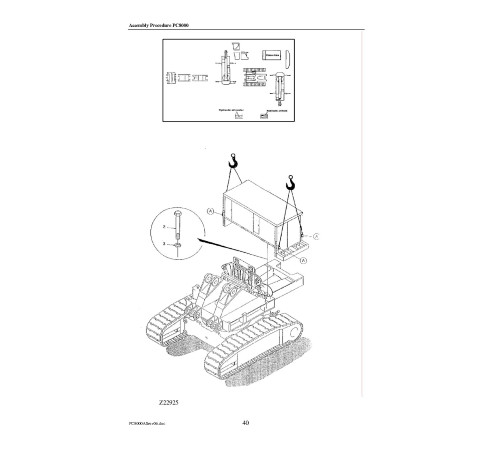

   Mounting the Fuel Tank or Main Switch Cabinet for electric Driven Unit
   Mounting of Cab Support
      Mounting of Cable transfer
      Mounting of front cover
   Mounting of Operators Cab
      Mounting of the Cab air cleaner (Cab support to Cab)
   Mounting of Hydraulic Oil Tank
   Mounting of Hydraulic Oil Coolers

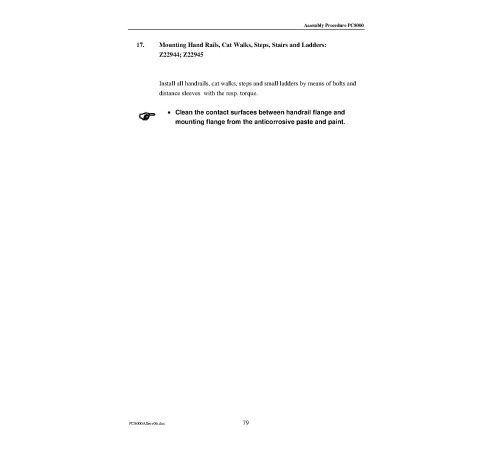

   Mounting Hand Rails, Cat Walks, Steps, Stairs and Ladders
   Install the hydraulic access ladder
   Installation of Muffler assy, and Cover
   Installation of Air Filters
   Installation of Lubrication Station and auxiliary Crane
   Connection of cable harnesses to the X - boards
   Installation of Hose connections on Hydr. Tank and Hydr. Oil Coolers
      Installation of Hose connections on Auxiliary Hydraulic Oil Cooler
   Installation of HP- Hoses in between HP - Filters and Main Valve Blocks
   Mounting of Bucket Cylinders
   Mounting of Stick
      Mounting of Stick (Backhoe attachment)

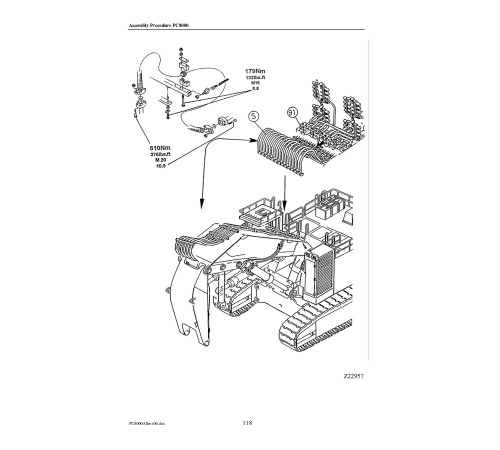

   Installation of Hose connections to the boom
   Filling up hydraulic tank
      Filling up fuel tank
   Pre-checks for initial Start-up
   Mounting of Stick Cylinders to the Stick
   Mounting of the Pin Seals
      Mounting of the Pin Seals
   Assembly of Bullclam Bucket to the Stick
      Assembly of Backhoe to the Stick
   Assembling and testing the Fire Detection, Actuation and Suppression System
   Checks and Adjustments Prior to Commissioning
