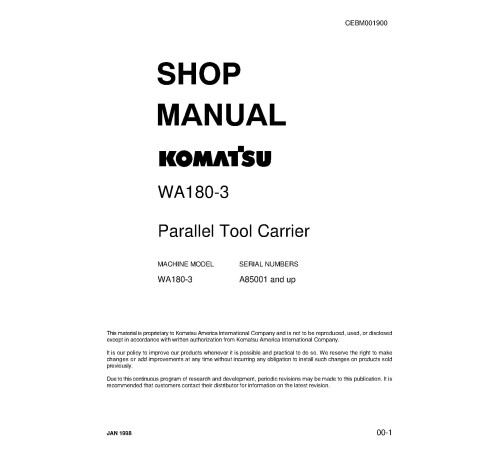

Komatsu WA180PT-3 (SN from A85001) Tool Cariers (Japan) Workshop Manual (CEBD001900)

Illustrated factory Workshop Manual for Komatsu Tool Cariers Models WA180PT-3.

This manual will assist you in diagnosing, repairing, and adjusting for your tool carier.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   WA180PT-3 (SN: A85001-)

Format: PDF, 633 pages
Language: English
Table of Contents:
   GENERAL
      SPECIFICATION DRAWINGS
      SPECIFICATIONS
      WEIGHT TABLE
      FUEL, COOLANT AND LUBRICANTS
      ENGINE OIL SPECIFICATIONS
      DIESEL FUEL SPECIFICATIONS
      COOLANT SPECIFICATIONS
   STRUCTURE AND FUNCTION
      POWER TRAIN
      PATH OF POWER TRANSMISSION
      TORQUE CONVERTER TRANSMISSION PIPING
      TORQUE CONV., TRANSMISSION HYDRAULIC SYSTEM DIAGRAM
      TORQUE CONV., TRANSMISSION HYDRAULIC CIRCUIT DIAGRAM
      TORQUE CONVERTER
      TORQUE CONVERTER OIL FILTER
      TRANSMISSION
      TRANSMISSION CONTROL VALVE
      TRANSMISSION CONTROL
      DRIVE SHAFT
      AXLE
      FINAL DRIVE
      AXLE MOUNT
      CENTER HINGE PIN
      STEERING PIPING
      STEERING COLUMN
      PRIORITY VALVE
      CUSHION VALVE
      STEERING VALVE (ORBIT-ROLL)
      STEERING VALVE
      BRAKE PIPING
      BRAKE CONTROL
      BRAKE BOOSTER
      PARKING BRAKE CONTROL
      PARKING BRAKE
      HYDRAULIC PIPING
      STEERING, HYDRAULIC PUMP HYDRAULIC SYSTEM DIAGRAM
      STEERING AND WORK EQUIPMENT HYDRAULIC CIRCUIT DIAGRAM
      HYDRAULIC TANK

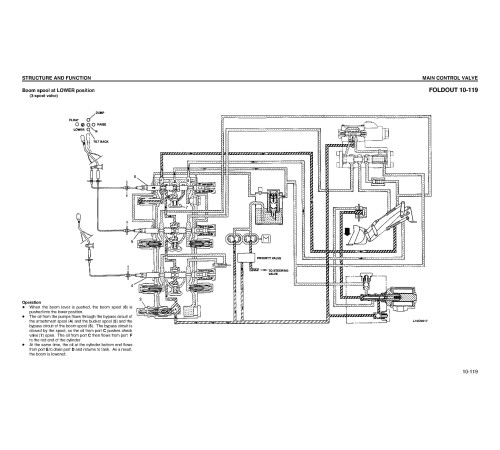

      MAIN CONTROL VALVE
      PILOT SOLENOID VALVE
      WORK EQUIPMENT LEVER LINKAGE
      BUCKET
      BUCKET POSITIONER AND BOOM KICK-OUT
      ROPS CAB
      AIR CONDITIONER/HEATER PIPING
      AIR CONDITIONER ELECTRIC CIRCUIT DIAGRAM (EAGLE)
      ELECTRICAL WIRING ILLUSTRATION
      ELECTRICAL WIRING DIAGRAM (1/3)
      ELECTRICAL WIRING DIAGRAM (2/3)
      ELECTRICAL WIRING DIAGRAM (3/3)
      CENTRAL PANEL (CLUSTER GUAGE)
      SENSOR
      ENGINE STARTING CIRCUIT
      ENGINE STOP CIRCUIT
      AUTOMATIC PREHEATING CIRCUIT (Q.H.S. CIRCUIT)
      ELECTRICAL TRANSMISSION CONTROL
      COMBINATION SWITCH
      TRANSMISSION CUT-OFF FUNCTION
      PARKING BRAKE FUNCTION
      KICK DOWN SWITCH
      KICK DOWN ELECTRIC CIRCUIT DIAGRAM
      DUMP SPEED SWITCH
      QUICK COUPLER SWITCH
   TESTING AND ADJUSTING
      STANDARD VALUE TABLE FOR ENGINE
      STANDARD VALUE TABLE FOR CHASSIS
      TOOLS FOR TESTING, ADJUSTING & TROUBLESHOOTING
      MEASURING ENGINE SPEEDS
      MEASURING ENGINE LUBRICATING OIL PRESSURE
      MEASURING FUEL FILTER INLET RESTRICTION
      MEASURING BLOW-BY PRESSURE
      MEASURING COMPRESSION PRESSURE
      MEASURING EXHAUST COLOR
      MEASURING COOLANT TEMPERATURE
      MEASURING AND ADJUSTING VALVE CLEARANCE
      MEASURING ACCELERATOR PEDAL
      MEASURING OPERATING FORCE & TRAVEL OF SPEED LEVER
      MEASURING STALL SPEEDS
      MEASURING TORQUE CONVERTER, TRANSMISSION OIL PRESSURE
      METHOD OF OPERATING EMERGENCY MANUAL SPOOL
      TESTING AND ADJUSTING STEERING WHEEL
      MEASURING STEERING OIL PRESSURE
      MEASURING OPERATING FORCE, TRAVEL OF BRAKE PEDAL
      TESTING AND ADJUSTING BRAKE PEDAL LINKAGE
      MEASURING BRAKE PERFORMANCE
      MEASURING BRAKE OIL PRESSURE
      MEASURING BRAKE DISC WEAR
      BLEEDING AIR FROM BRAKE SYSTEM
      MEASURING PARKING BRAKE PERFORMANCE
      TESTING AND ADJUSTING PARKING BRAKE LINKAGE
      TESTING PARKING BRAKE DISC WEAR
      MEASURING PARKING BRAKE DISC WEAR
      MEASURING WORK EQUIPMENT CONTROL LEVER
      MEASURING STROKE OF WORK EQUIPMENT VALVE SPOOL
      MEASURING WORK EQUIPMENT HYDRAULIC PRESSURE
      MEASURING WORK EQUIPMENT CYCLE TIMES
      MEASURING WORK EQUIPMENT HYDRAULIC DRIFT
      TESTING AND ADJUSTING BOOM KICK-OUT (IF EQUIPPED)
      TESTING AND ADJUSTING BUCKET / FORK POSITIONER
      ADJUSTING MAIN MONITOR (SPEEDOMETER MODULE)
      CHECKING FOR ABNORMALITY IN FUEL LEVEL SENSOR

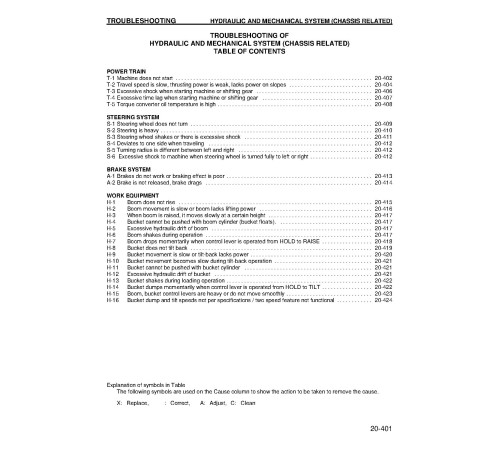

      TROUBLESHOOTING TABLE OF CONTENTS
   DISASSEMBLY AND ASSEMBLY
      METHOD OF USING MANUAL
      PRECAUTIONS WHEN CARRYING OUT OPERATION
      SPECIAL TOOL LIST
      STARTING MOTOR
      ALTERNATOR
      FUEL INJECTION PUMP
      ENGINE OIL COOLER
      WATER PUMP
      NOZZLE HOLDER
      THERMOSTAT
      TURBOCHARGER
      CYLINDER HEAD
      RADIATOR
      ENGINE
      ENGINE HOOD
      EXHAUST MUFFLER
      AIR CLEANER
      TORQUE CONVERTER CHARGING PUMP
      TORQUE CONVERTER, TRANSMISSION
      TORQUE CONVERTER
      TRANSMISSION
      TRANSMISSION CLUTCH PACK
      TRANSMISSION CONTROL VALVE
      TRANSMISSION SOLENOID VALVE
      TRANSMISSION ACCUMULATOR VALVE
      DRIVE SHAFT
      FRONT AXLE
      REAR AXLE

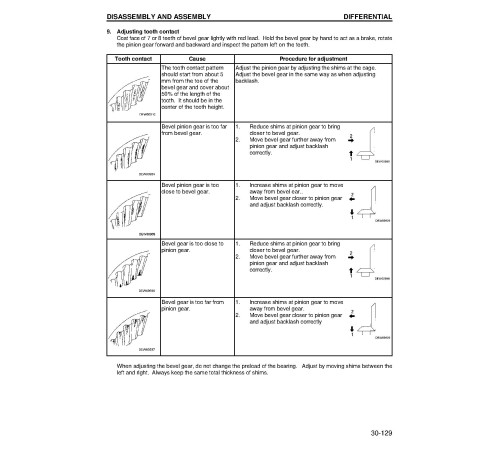

      DIFFERENTIAL
      AXLE HOUSING
      CENTER HINGE PIN
      PILOT SOLENOID VALVE
      PRIORITY VALVE
      STEERING VALVE
      MAIN CONTROL VALVE
      STEERING CYLINDER
      BRAKE BOOSTER
      PARKING BRAKE
      HYDRAULIC TANK
      HYDRAULIC FILTER
      HYDRAULIC STEERING PUMP
      TILT CYLINDER
      LIFT CYLINDER
      HYDRAULIC CYLINDER
      BOOM AND PARALLEL TOOL LINKAGE
      FUEL TANK
      COUNTERWEIGHT
      INSTRUMENT PANEL
   MAINTENANCE STANDARD
      ENGINE MOUNT, TRANSMISSIONMOUNT
      TORQUE CONVERTER CHARGING PUMP
      TORQUE CONVERTER
      TRANSMISSION
      TRANSMISSION CONTROL VALVE
      ACCUMULATOR VALVE
      DRIVE SHAFT
      DIFFERENTIAL
      FINAL DRIVE
      AXLE MOUNT
      CENTER HINGE PIN
      STEERING COLUMN
      STEERING CYLINDER MOUNT
      PRIORITY VALVE
      BRAKE BOOSTER
      BRAKE
      PARKING BRAKE
      HYDRAULIC PUMP
      MAIN CONTROL VALVE
      PILOT SOLENOID VALVE
      HYDRAULIC CYLINDER
      WORK EQUIPMENT LINKAGE
      BUCKET POSITIONER AND BOOM KICK-OUT
      ADDITIONAL COUNTERWEIGHT
