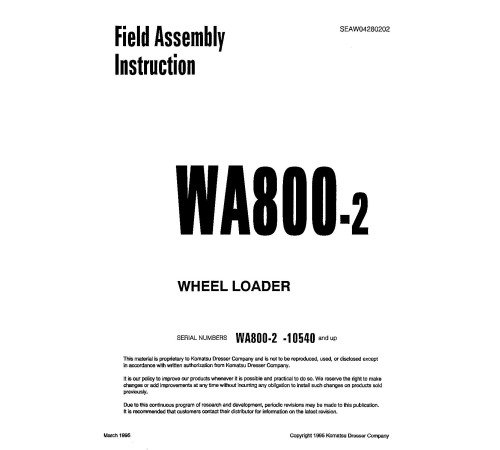

Komatsu WA800-2 (SN from 10540) 4WD Wheeled Loaders (Japan) Field Assembly Manual (SEAWD04280202)

Illustrated factory Field Assembly Manual for Komatsu 4WD Wheeled Loaders Models WA800-2.

This manual will assist you in for your 4wd wheeled loader.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models (Japan):
   WA800-2 (SN: 10540-)

Format: PDF, 106 pages
Language: English
Table of Contents:
   CHART OF SEPARATED UNITS
   DIMENSIONS OF SEPARATED UNITS
   ORDER FOR ASSEMBLY, FACILITIES TO USE, SCHEDULE FOR ASSEMBLY
   WORK SPACE LAYOUT DIAGRAM
   TOOLS AND EQUIPMENT TO USE
   PARTS LIST FOR FIELD ASSEMBLY
   PROCEDURE FOR FIELD ASSEMBLY
      A-1 SETTING BARE MACHINE ON SUPPORTS
      A-2 ASSEMBLY OF REAR AXLE

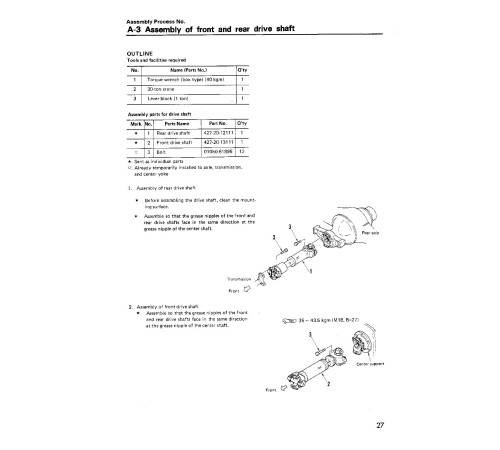

      A-3 ASSEMBLY OF FRONT AND REAR DRIVE SHAFT
      A-4 ASSEMBLY OF FRONT AXLE
      A-5 ASSEMBLY OF FUEL TANK
      A-6 ASSEMBLY OF LADDER (LEFT, RIGHT)
      A-7 ASSEMBLY OF FLOOR AND CAB ASSEMBLY
      A-8 ASSEMBLY OF HAND RAIL

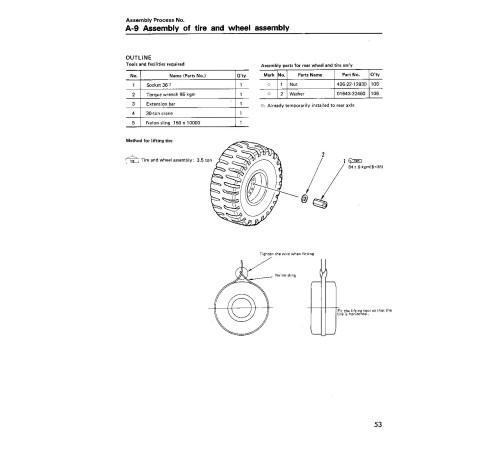

      A-9 ASSEMBLY OF TIRE AND WHEEL ASSEMBLY
      A-10 ASSEMBLY OF BATTERY BOX ASSEMBLY
      A-10A ASSEMBLY OF COUNTERWEIGHT ASSEMBLY
      A-11 ASSEMBLY OF MUFFLER PIPE
      A-12 ASSEMBLY OF LIFT ARM ASSEMBLY
      A-13 ASSEMBLY OF FRONT FENDER
      A-14 ASSEMBLY OF FRONT LAMP ASSEMBLY
      A-15 ASSEMBLY OF ROPS CANOPY ASSEMBLY
      A-16 ASSEMBLY OF BUCKET
      M-1 BLEEDING AIR FROM BRAKE LINE
      M-2 GREASING WORK EQUIPMENT AND CHASSIS
      M-3 ADJUSTING BUCKET POSITIONER

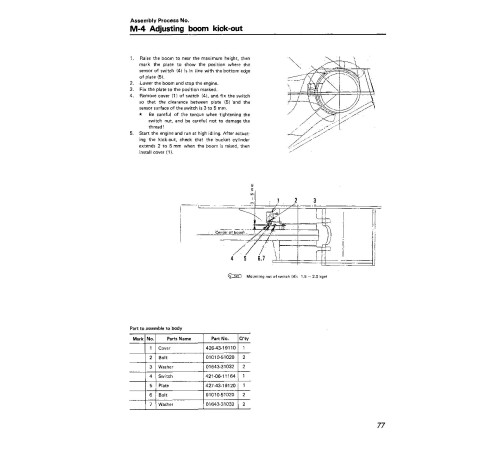

      M-4 ADJUSTING BOOM KICK-OUT
      M-5 INSPECTION OF ALL PARTS
      M-6 PROCEDURE FOR STARTING ENGINE
      M-7 PROCEDURE FOR BLEEDING AIR FROM PISTON PUMP
      M-8 PROCEDURE FOR BLEEDING AIR FROM WORK EQUIPMENT HYDRAULIC CIRCUIT
      M-9 CHARGING AIR CONDITIONER GAS
   APPENDIX
      FIELD ASSEMBLY INSPECTION REPORT
