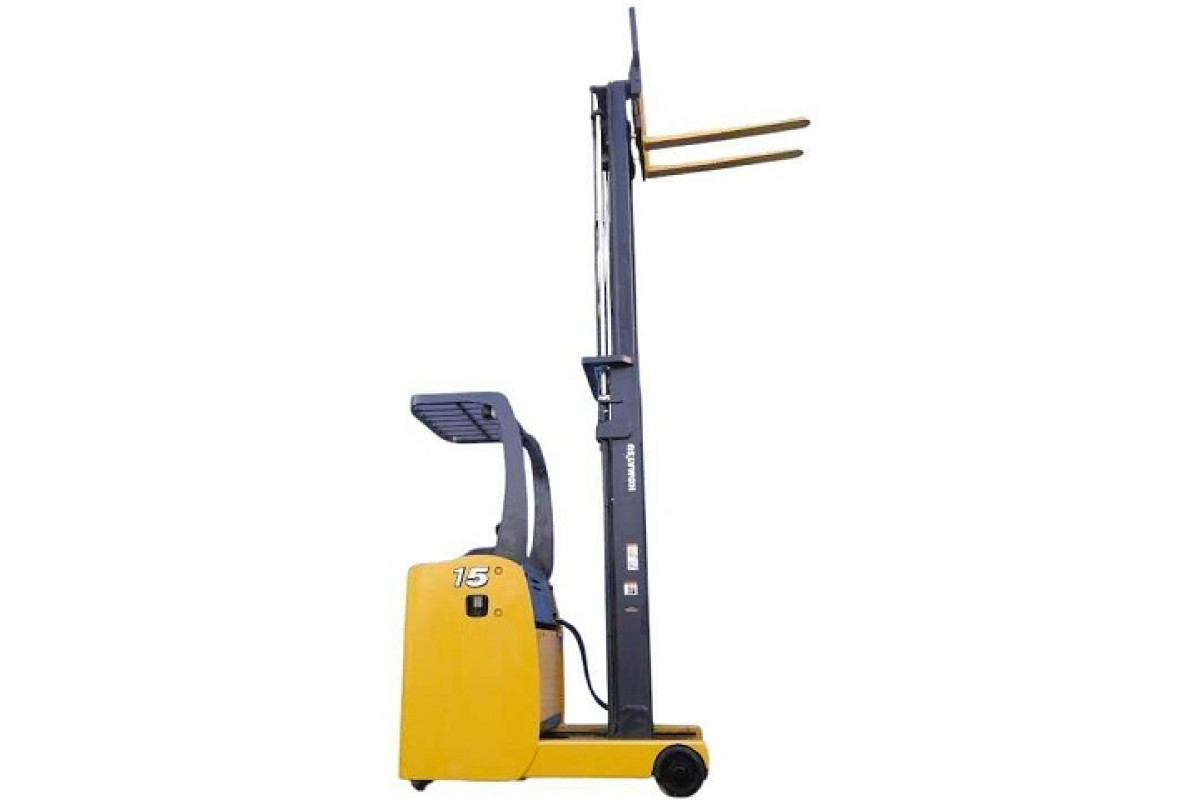

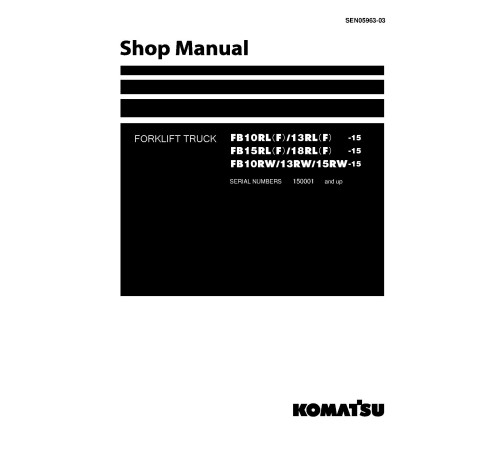

Komatsu FB10RL/RLF/RW-15, FB13RL/RLF/RW-15, FB15RL/RLF/RW-15, FB18RL/RLF-15 Reach Trucks Workshop Manual (SEN05963-03)

Illustrated factory Workshop Manual for Komatsu Reach Trucks Models FB10RL-15, FB10RLF-15, FB10RW-15, FB13RL-15, FB13RLF-15, FB13RW-15, FB15RL-15, FB15RLF-15, FB15RW-15, FB18RL-15 and FB18RLF -15.

This manual will assist you in diagnosing, repairing, and adjusting for your reach truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FB10RL-15 (SN: 150001-)
   FB10RLF-15 (SN: 150001-)
   FB10RW-15 (SN: 150001-)
   FB13RL-15 (SN: 150001-)
   FB13RLF-15 (SN: 150001-)
   FB13RW-15 (SN: 150001-)
   FB15RL-15 (SN: 150001-)
   FB15RLF-15 (SN: 150001-)
   FB15RW-15 (SN: 150001-)
   FB18RL-15 (SN: 150001-)
   FB18RLF -15 (SN: 150001-)

Format: PDF, 326 pages
Language: English
Table of Contents:
   INDEX
   GENERAL AND SPECIFICATIONS
      SPECIFICATION
      SAFETY ITEMS FOR MAINTENANCE
      STANDARD TIGHTENING TORQUE FOR BOLTS
      STANDARD TIGHTENING TORQUE FOR PIPE JOINTS
      HOW TO USE LOCTITE
   TESTING AND ADJUSTING
      SERVICE DATA
      BATTERY
      VEHICLE MOUNTED TYPE CHARGER
      INSTALLATION TYPE CHARGER
      HYDRAULIC OIL TANK
      TRANSFER CASE
      FUSE REPLACEMENT
      DISC BRAKE
      MAST, ROLLER SUPPORT
      EPS TORQUE SENSOR
      METER PANEL
      OPERATION OF METER PANEL
      LIMIT CURRENT (LOCK CURRENT)
      ADJUSTMENT OF HORIZONTAL SWITCH (LIMIT SWITCH)
      SPECIFIED LUBRICANT AND GREASE
      OIL AND GREASE CHART
      WEIGHT GAUGE (LOAD METER)
   REMOVAL AND INSTALLATION
      LIFT CYLINDER
      FORK CARRIAGE
      MAST
      TRANSFER
      BATTERY (SIDE DRAW TYPE)
      BATTERY (FRONT SIDE-DRAW TYPE)
      DRIVE WHEEL (FOR RL TYPE)

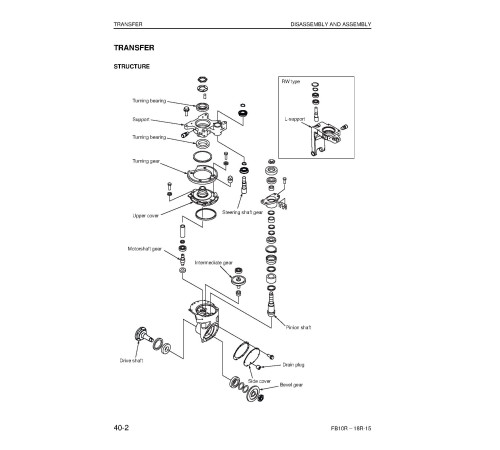

   DISASSEMBLY AND ASSEMBLY
      TRANSFER
      EPS ACTUATOR
      BRAKE SYSTEM
      CONTROL VALVE
      LIFT CYLINDER
      TILT CYLINDER
      REACH CYLINDER
      MAST
      DRIVE MOTOR
      PUMP MOTOR
      EPS MOTOR
   MAINTENANCE STANDARD
      TRANSFER
      DRIVE WHEEL
      LOAD WHEEL
      SUSPENSION AND CASTER WHEEL
      CASTER WHEEL
      FRONT DRAW TRAY
      BATTERY INTERLOCK MICRO-SWITCH
      FLOOR PLATE ASSEMBLY (RL TYPE)
      BRAKE
      EPS ACTUATOR
      CONTROL VALVE SWITCH
      CONTROL VALVE
      LIFT CYLINDER
      REACH CYLINDER
      TILT CYLINDER
      MAST
      DRIVE MOTOR
      PUMP MOTOR
      POWER STEERING (EPS) MOTOR
      CONTROLLER

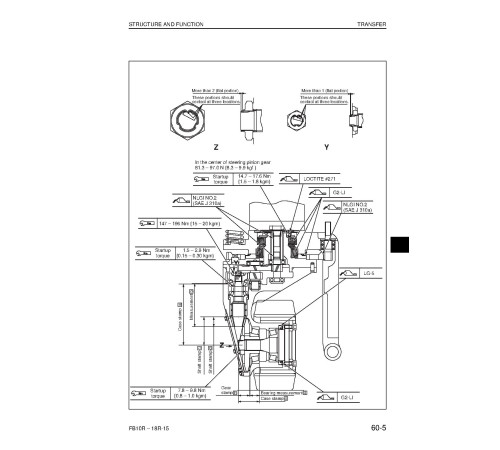

   STRUCTURE AND FUNCTION
      TRANSFER
      CASTER WHEEL
      SUSPENSION
      BRAKE
      EPS (ELECTRIC POWER STEERING)
      CONTROL VALVE
      HYDRAULIC CIRCUIT DIAGRAM
      FREE LIFT MAST
      FV MAST (STD)
      VT MAST
      FORK CARRIAGE
      CONTROLLERS
      FR ACCELERATOR
      CHARGER (MOUNTED ON TRUCK SYSTEM) (OPTION)AUTOMATIC EQUAL CHARGING SYSTEM
      BATTERY CHARGER (STATIONARY TYPE) (OPTION)NORMAL EQUAL CHARGING
      ELECTRICAL CIRCUIT DIAGRAM
   TROUBLESHOOTING
      DIAGNOSIS TOOL
      CONFIGURATION PARTS, SENSOR, UNIT LOCATION DRAWING
      HARNESS LIST
      LOCATION OF CPU BOARD CONNECTOR
      OVERVIEW OF ABNORMAL CODE
      PREPARATION FOR VOLTAGE CHECK AND CURRENT CHECK
      INPUT/OUTPUT SIGNAL OF CONTROLLER
      ABNORMAL CODE LIST

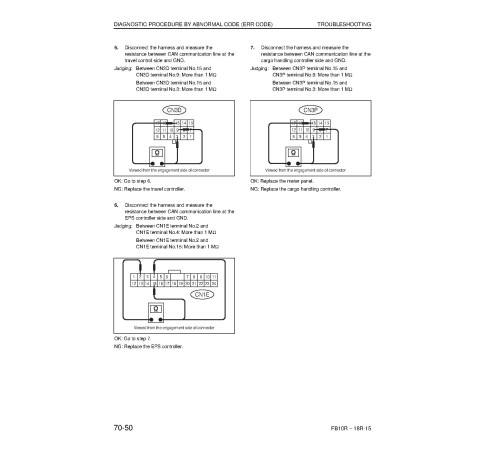

      DIAGNOSTIC PROCEDURE BY ABNORMAL CODE (ALA CODE)
      DIAGNOSTIC PROCEDURE BY ABNORMAL CODE (ERR CODE)
      DIAGNOSTIC PROCEDURE BY METER DISPLAY TROUBLE CODE
      TROUBLE WITHOUT ABNORMAL DISPLAY
      METER PANEL
   YEARLY INSPECTION CRITERIA
      MOTOR
      CONTROL EQUIPMENT
      BATTERY
      POWER TRANSFER EQUIPMENT
      TRAVEL EQUIPMENT
      STEERING EQUIPMENT
      BRAKING EQUIPMENT
      CARGO HANDLING EQUIPMENT
      HYDRAULIC EQUIPMENT
      BODY, SAFETY EQUIPMENT, ETC
      TOTAL TEST
   CONVERSION TABLE
      MILLIMETERS TO INCHES
      INCHES TO MILLIMETERS
      CUBIC METERS TO CUBIC YARDS
      CUBIC YARDS TO CUBIC METERS
      LITER TO U.S. GALLON
      U.S. GALLON TO LITER
      LITER TO U.K. GALLON
      U.K. GALLON TO LITER
      KILOGRAM TO POUND
      POUND TO KILOGRAM
      KG/CM2 TO IB/IN2
      KGM TO FT IB
      TEMPERATURE
