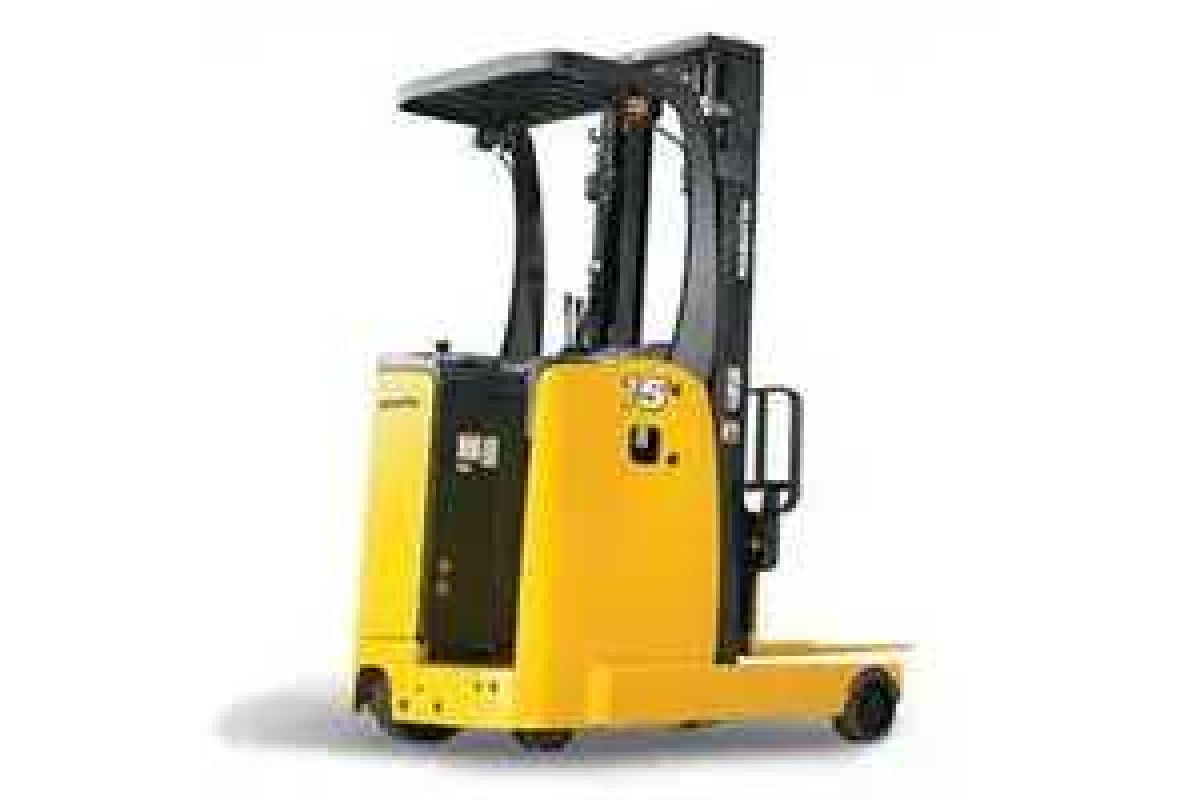

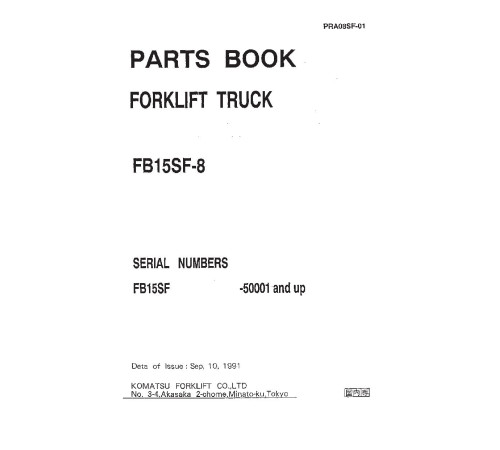

Komatsu FB15SF-8 (SN from 50001) Reach Trucks Parts Catalog (PRA08SF-01)

Illustrated factory Parts Catalog for Komatsu Reach Trucks Models FB15SF-8.

This manual will assist you in finding spare parts for your reach truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FB15SF-8 (SN: 50001-)

Format: PDF, 132 pages
Language: English
Table of Contents:
   ELECTRICAL SYSTEM
     DRIVE MOTOR.
     PUMP MOTOR.
     POWER STEERING MOTOR
     PUMP MOTOR BRACKET
     BATTERY (FOR 48V 280AH)
     DRIVE CONTROLLER.
     F-R ACCELERATOR.
     CHARGER
     CHARGER MOUNT ING PARTS,
     ELECTRICAL SYSTEM.
     ELECTRICAL SYSTEM C DASHBOARD)

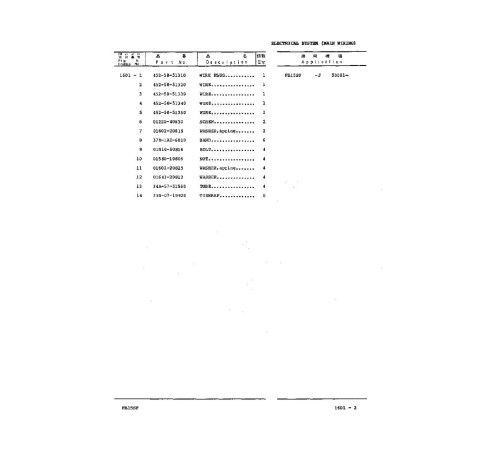

     ELECTRICAL SYSTEM (MAIN WIRING)
     ELECTRICAL SYSTEM (WINKER LAMP)
   TRANSFER AND WHEEL
     TRANSFER
     LOAD WHEEL (L.H) (FOR RUBBER)
     LOAD WHEEL (R.H) (FOR RUBBER)
     DRIVE WHEEL (FOR RUBBER)
     CASTOR WHEEL (FOR RU8BER)
     SUSPENTION.
     BRAKE SYSTEM.
   STEERING AND CONTROL SYSTEM
     STEERING SYSTEM
     FB15SF
     ELECTRICAL POWER STEERING
     BRAKE PEDAL
   FRAME AND OUTER PANEL
     FRAME.
     OUTER PANEL
     OUTER PANEL
     OUTER PANEL
     HEAD GUARD
     NAME PLATE
   U0RK EQUIPMENT AND IT'S CONTROL SYSTEM
     HYDRAULIC PUMP
     SPOOL CONTROL VALVE
     SPOOL CONTROL VALVE LEVER
     LIFT CYLINDER
     TILT CYLINDER.

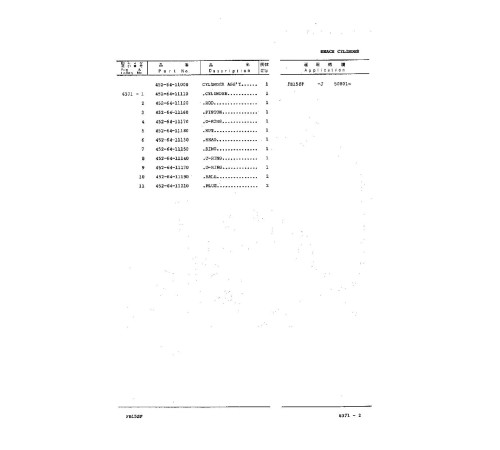

     REACH CYLINDER.
     HYDRAULIC PIPING
     OUTER MAST
     INNER MAST.
     MAST PIPING
     FORK CARRIAGE
     FORK
   TOOL
     TOOL
     K.KIT
     KIT.
     N.NUMERICAL INDEX
     NUMERICAL INDEX.
