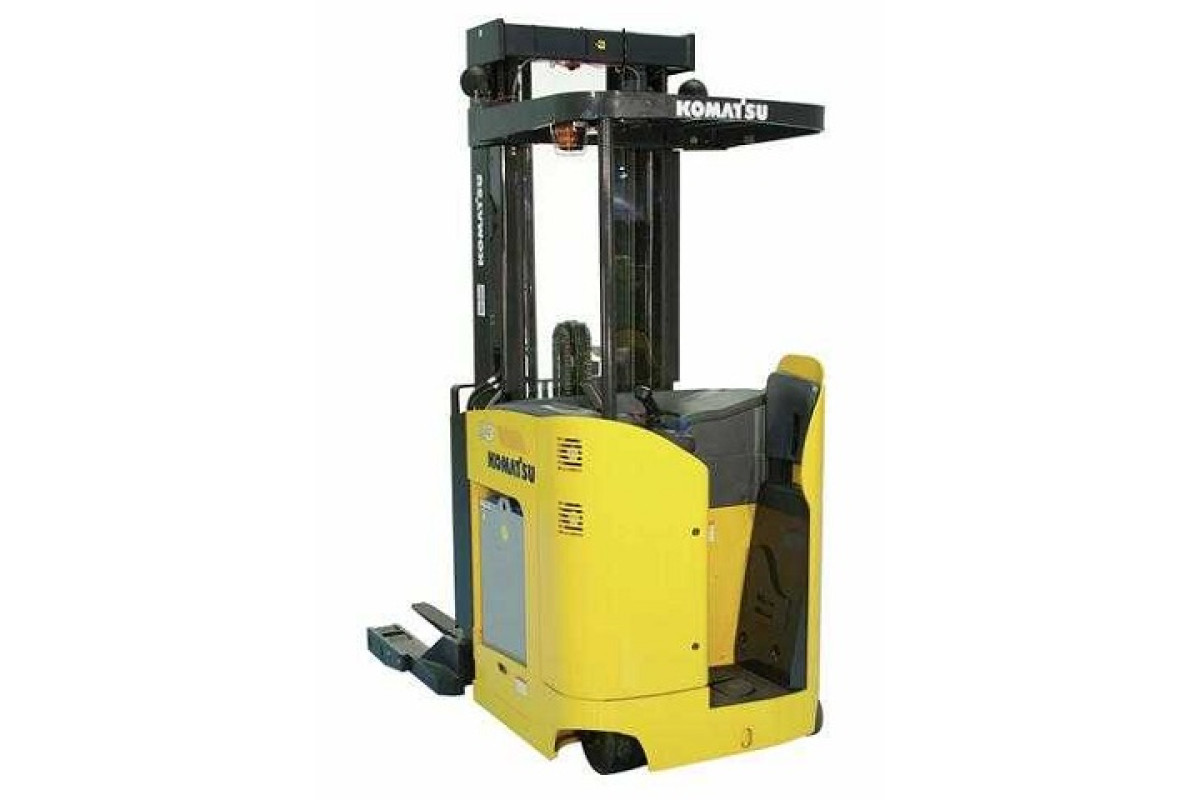

Komatsu FR15K-3, FR18K-3 and FR23K-3 (SN from 169E00001) Reach Trucks Service Manual (FR15K.3_SM151)

Illustrated factory Service Manual for Komatsu Reach Trucks Models FR15K-3, FR18K-3 and FR23K-3.

This manual will assist you in diagnosing, analyses, testing, and repair for your reach truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FR15K-3 (SN: 169E00001-)
   FR18K-3 (SN: 169E00001-)
   FR23K-3 (SN: 169E00001-)

Format: PDF, 209 pages
Language: English
Table of Contents:
   Introduction
   Installation
   Periodic Maintenance
   Troubleshooting
   Mast Uprights
   Upright Removal
   Upright Chain Inspection
   Upright Cylinders
   Upright Shimming
   Pantograph Removal

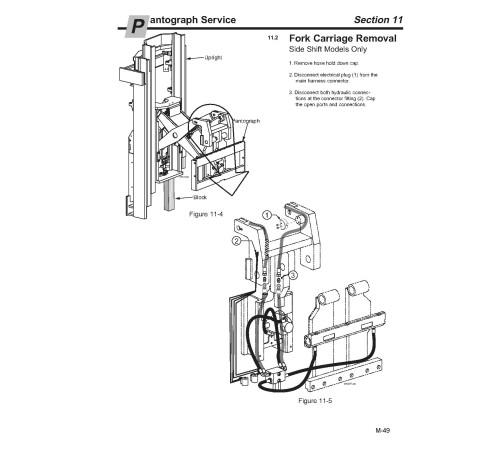

   Pantograph Service
   Pantograph Shimming
   Pantograph Valve Service
   Guard & Load Wheel Box
      Overhead Guard
      Load Wheel Box
