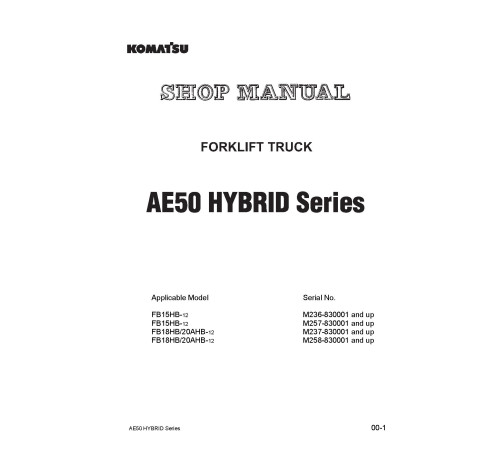

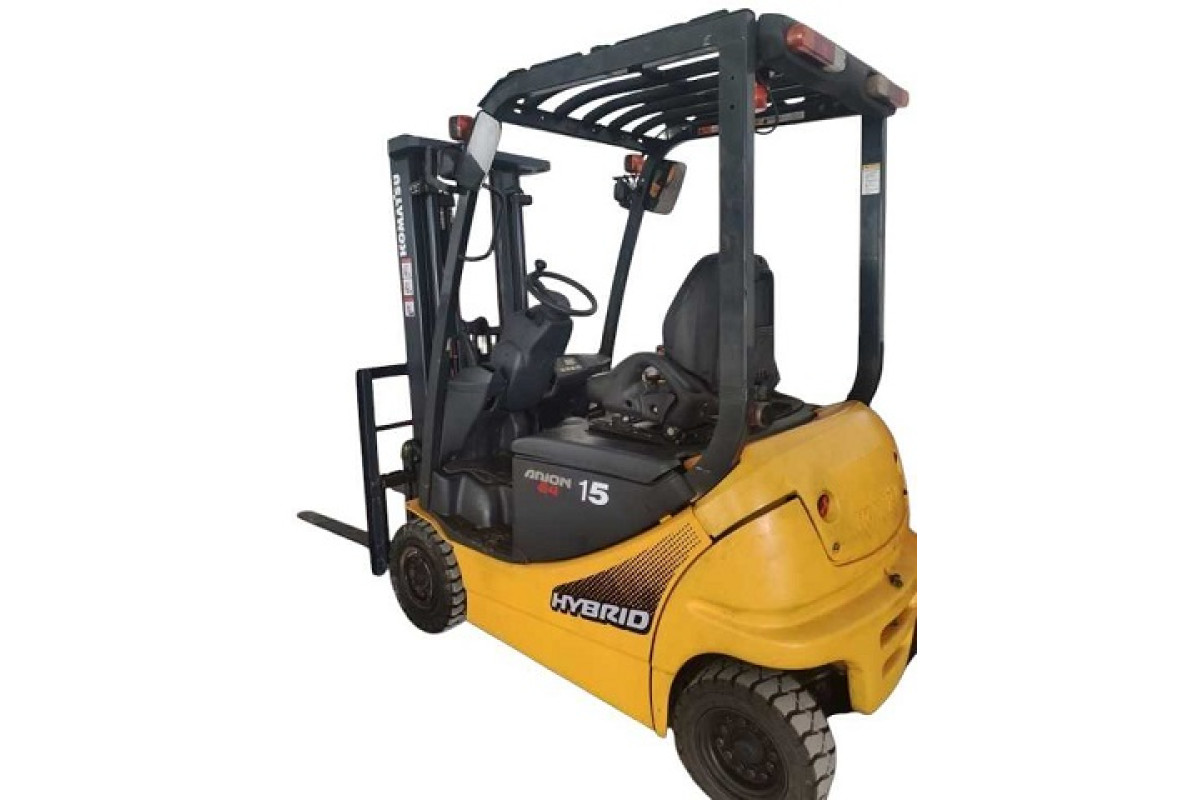

Komatsu AE50 Hybrid FB15HB-12, FB18HB-12 and FB20AHB-12 (SN: 830001-) Forklift Trucks set of Workshop Manuals (BHA12E1-05)

Illustrated factory set of Workshop Manuals for Komatsu AE50 Hybrid Forklift Trucks Models FB15HB-12, FB18HB-12 and FB20AHB-12.

This manuals will assist you in diagnosing, repairing, and adjusting for your forklift truck.
You can use a Windows, Mac, or Android device to view this manuals. You only need to have a PDF reader installed.

Covered Models:
   AE50 Hybrid FB15HB-12 (SN: M236-830001-; M257-830001-)
   AE50 Hybrid FB18HB-12 (SN: M237-830001-; M258-830001-)
   AE50 Hybrid FB20AHB-12 (SN: M237-830001-; M258-830001-)

The manual comprises two Workshop Manuals

1. Workshop Manual (BBA12E1-11_SM)
Format: PDF, 464 pages
Language: English
Table of Contents:
   FOREWORD
      INDEX
   GENERAL AND SPECIFICATIONS
      OUTSIDE VIEW
      SPECIFICATIONS
      PERIODIC REPLACEMENT OF CONSUMABLE PARTS
      SAFETY ITEMS FOR MAINTENANCE
      STANDARD TIGHTENING TORQUE FOR BOLTS
      STANDARD TIGHTENING TORQUE FOR PIPE JOINTS
      HOW TO USE LOCTITE
   TESTING AND ADJUSTING
      SERVICE DATA
      METHOD OF RELEASING THE PRESSURE IN THE HYDRAULIC PIPING
      LIFT INTERRUPT FUNCTION
      HOW TO START UP THE HOUR METER
      SEATBELT INTERLOCK FUNCTION
      LIFTING HEIGHT TRAVEL SPEED LIMIT
      METER PANEL
      OPERATION OF METER PANEL
      BATTERY
      FUSE
      TRANSFER CASE
      VEHICLE MOUNTED TYPE CHARGER
      INSTALLATION TYPE CHARGER
      ADJUSTMENT OF WET TYPE BRAKE AND PARKING BRAKE
      WET TYPE BRAKE
      HYDRAULIC OIL TANK
      MAST
      LIFTING HEIGHT DETECTION SENSOR
      FINGER BAR
      NATURALLY DESCENDING AMOUNT OF HYDRAULIC OIL CYLINDER, MEASUREMENT OF NATURALLY FORWARD TILTING AMOUNT
      AIR BLEEDING
      LIST OF LUBRICANT AND GREASE
   REMOVAL AND INSTALLATION
      UNIT LOCATION DIAGRAM
      UNIT MASS
      DRAWING OF DISASSEMBLY/ASSEMBLY
      MAST
      LIFT CYLINDER
      DRIVE AXLE
      STEERING AXLE
      REAR AXLE
      BATTERY
      HYDRAULIC PUMP AND PUMP MOTOR
      VEHICLE MOUNTED CHARGER
   DISASSEMBLY AND ASSEMBLY
      DRIVE AXLE
      TRANSFER
      BRAKE WHEEL CYLINDER
      BRAKE MASTER CYLINDER
      STEERING GEAR BOX
      ORBITROL
      POWER STEERING CYLINDER
      STEERING AXLE
      REAR AXLE
      LIFT CYLINDER
      TILT CYLINDER
      HYDRAULIC PUMP
      CONTROL VALVE
      DRIVE MOTOR
      PUMP MOTOR
   MAINTENANCE STANDARD
      DRIVE AXLE
      BRAKE MASTER CYLINDER
      STEERING AXLE
      REAR AXLE
      LIFT CYLINDER
      TILT CYLINDER
      CONTROL VALVE
      HYDRAULIC PUMP
      MAST, FINGER BAR, FORK
      DRIVE MOTOR
      PUMP MOTOR
   STRUCTURE AND FUNCTION
      BRAKE
      HYDRAULIC CIRCUIT DIAGRAM
      CONTROL VALVE
   TROUBLESHOOTING
      DIAGNOSIS TOOL
      CONFIGURATION PARTS, SENSOR, UNIT LOCATION DRAWING
      LOCATION DRAWING
      HARNESS LIST
      LOCATION OF CPU BOARD CONNECTOR
      OVERVIEW OF ABNORMAL CODE
      PREPARATION FOR VOLTAGE CHECK AND CURRENT CHECK
      INPUT/OUTPUT SIGNAL OF CONTROLLER

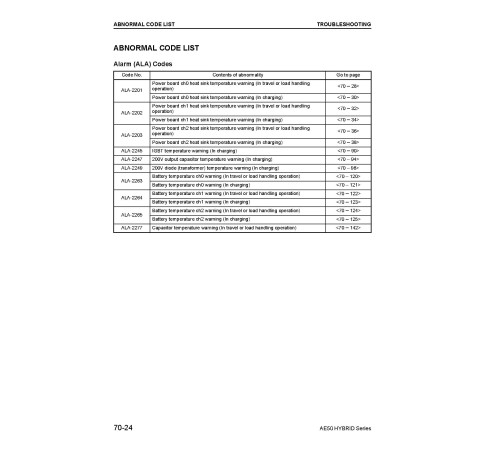

      ABNORMAL CODE LIST

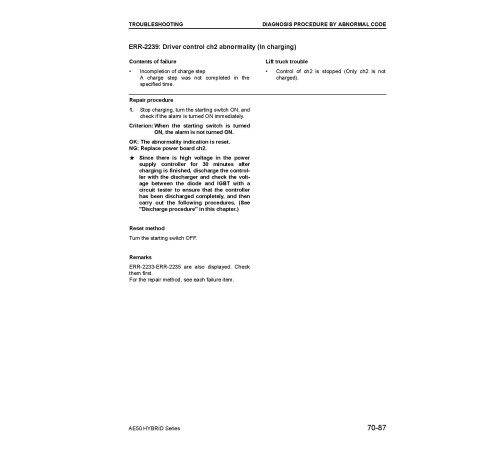

      DIAGNOSTIC PROCEDURE BY ABNORMAL CODE (ALA CODE)

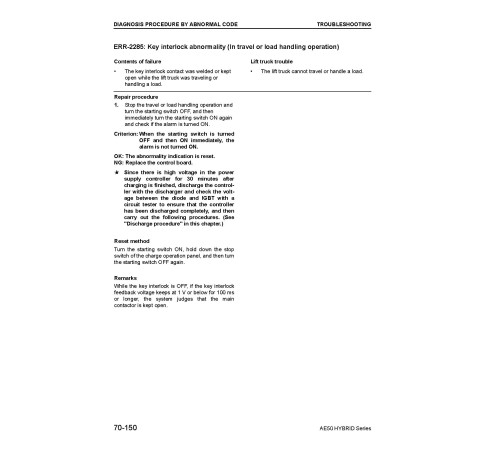

      DIAGNOSTIC PROCEDURE BY ABNORMAL CODE (ERR CODE)
      DIAGNOSTIC PROCEDURE BY METER DISPLAY TROUBLE CODE
      TROUBLE WITHOUT ABNORMAL DISPLAY
      PROPORTIONAL SOLENOID VALVE CONTROLLER
      ADJUSTMENT PROCEDURE OF TILT AUTOMATIC HORIZONTAL (OPTION)
      METER PANEL
   YEARLY INSPECTION CRITERIA
      MOTOR
      CONTROL EQUIPMENT
      CHARGE CONTROL UNIT
      BATTERY
      POWER TRANSFER EQUIPMENT
      TRAVELING EQUIPMENT
      STEERING EQUIPMENT
      BRAKING EQUIPMENT
      CARGO HANDLING EQUIPMENT
      HYDRAULIC EQUIPMENT
      BODY, SAFETY EQUIPMENT, ETC
      TOTAL TEST
   CONVERSION TABLE
      MILLIMETERS TO INCHES
      INCHES TO MILLIMETERS
      CUBIC METERS TO CUBIC YARDS
      CUBIC YARDS TO CUBIC METERS
      LITER TO U.S. GALLON
      U.S. GALLON TO LITER
      LITER TO U.K. GALLON
      U.K. GALLON TO LITER
      KILOGRAM TO POUND
      POUND TO KILOGRAM
      KG/CM2 TO IB/IN2
      KGM TO FT IB
      TEMPERATURE
   APPENDIX
      BA-97-99310 (INPUT CAP PRESS-FITTING JIG)
      BA-97-99320 (INPUT OIL SEAL PRESS-FITTING JIG)
      BA-97-99330 (INPUT HUB BEARING PRESS-FITTING JIG)
      BA-97-99710(INPUT GEAR/BEARING PRESS-FITTING JIG)
      BA-97-99720 (MULTIPLE DISC ALIGNMENT JIG)
      BA-97-99730 (MULTIPLE HOLDER CLEARANCE ALIGNING JIG)
      BA-97-99740 (3 WHEEL REAR AXLE PRESS-FITTING JIG)
      BA-97-99760 (3 WHEEL REAR AXLE SENSOR ALIGNMENT JIG)
      SERVICE TOOL CONFIGURATION
      ELECTRIC WIRING DIAGRAM (BUILD IN CHARGER)
      ELECTRIC WIRING DIAGRAM (BUILD IN CHARGER)
      ELECTRIC WIRING DIAGRAM (BUILD IN CHARGER)
      ELECTRIC WIRING DIAGRAM (MACHINE WITH SEATBELT INTERLOCK SYSTEM AND HIGH MAST TRAVEL SPEED LIMIT SYSTEM
      ELECTRIC WIRING DIAGRAM (1/2) (MACHINE WITH SEATBELT INTERLOCK SYSTEM AND HIGH MAST TRAVEL SPEED LIMIT SYSTEM)
      ELECTRIC WIRING DIAGRAM (2/2) (MACHINE WITH SEATBELT INTERLOCK SYSTEM AND HIGH MAST TRAVEL SPEED LIMIT SYSTEM)
      ELECTRIC WIRING DIAGRAM (STATIONARY CHARGER)
      ELECTRIC WIRING DIAGRAM (STATIONARY CHARGER)
      ELECTRIC WIRING DIAGRAM (STATIONARY CHARGER)
