Komatsu FB13MV-1E, FB16M-1E, FB16MV-1E, FB18M-1E and FB20M-1E Forklift Trucks Workshop Manual (FBM13_20.1E-BE1)

Illustrated factory Workshop Manual for Komatsu Forklift Trucks Models FB13MV-1E, FB16M-1E, FB16MV-1E, FB18M-1E and FB20M-1E.

This manual will assist you in diagnosing, repairing, and adjusting for your forklift truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FB13MV-1E
   FB16M-1E
   FB16MV-1E
   FB18M-1E
   FB20M-1E

Format: PDF, 71 pages
Language: English
Table of Contents:
   General information about the vehicle and normal handling
      Think safety first
      Safety regulations

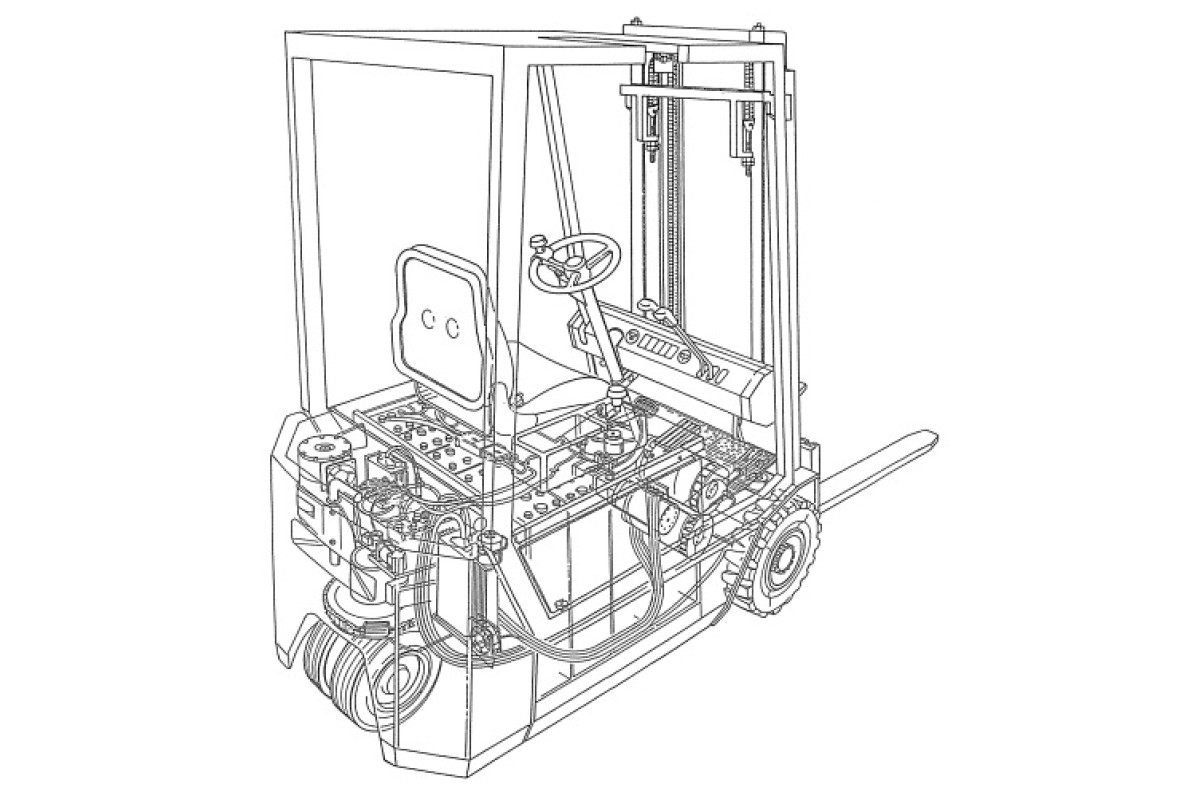

      Full view of the vehicle
   Chassis and body
      Chassis
      Cover
      Removing the counterweight
   Steering system
      General description
      Removing and installing the hydraulic pump motor for the steering system
      Removing and installing the steering column with steering servostat

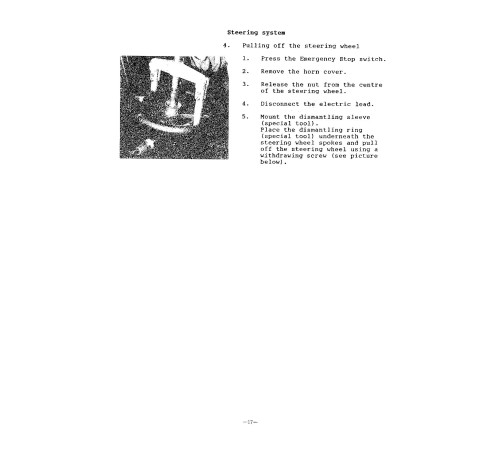

      Pulling off the steering wheel
      Removing and installing the fifth-wheel steering assembly
      Adjusting the steering angle potentiometer
      Tensioning the steering chain
      Changing the carbon brushes in the steering motor
   Power unit
      Removing and installing the top and bottom traction motor
      Changing carbon brushes in the top traction motor
      Changing carbon brushes in the bottom traction motor
      Servicing regulations for DC motors
   Transmission and gear unit
   Brake system
      Removing and installing brake shoes
      Removing and installing the wheel hub
      Removing and installing the wheel brake cylinder

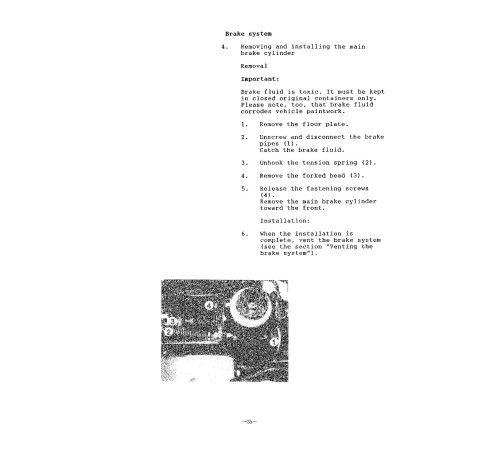

      Removing and installing the main brake cylinder
      Adjusting the service brake
      Readjusting the parking brake
      Venting the brake system
   Electrical system
   Hydraulic system
      General description (Not used)
      Removing and installing the hydraulic assembly
      Removing and installing the hydraulic pump
      Changing the carbon brushes in the hydraulic pump motor
      Removing and installing the control block

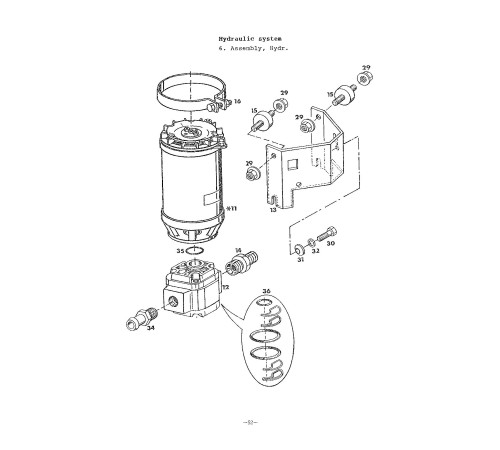

      The hydraulic assembly
      Hydraulic circuit diagram
   Mast and lift cylinders
