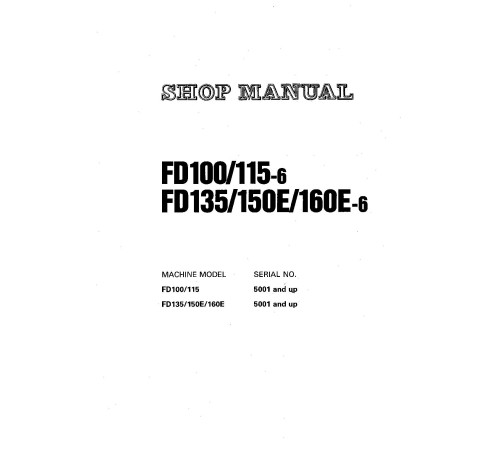

Komatsu FD100-6, FD115-6, FD135-6, FD150E-6, FD160E-6 (SN: 5001-5999) Diesel Forklift Trucks Workshop Manual (BEE06E1-02)

Illustrated factory Workshop Manual for Komatsu Diesel Forklift Trucks Models FD100-6, FD115-6, FD135-6, FD150E-6 and FD160E-6.

This manual will assist you in diagnosing, repairing, and adjusting for your diesel forklift truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FD100-6 (SN: 5001-5999)
   FD115-6 (SN: 5001-5999)
   FD135-6 (SN: 5001-5999)
   FD150E-6 (SN: 5001-5999)
   FD160E-6 (SN: 5001-5999)

Format: PDF, 256 pages
Language: English
Table of Contents:
   FOREWORD
   GENERAL AND SPECIFICATIONS
      Specifications
      Periodic replacement of consumable parts
      Safety items for maintenance
      Standard tightening torque for bolts
      Standard tightening torque for pipe
   TESTING AND ADJUSTING
      Service data
      Engine
      Air cleaner
      Adjusting of valve clearance
      Tightening torque of cylinder head
      Fuel injection timing
      Adjusting accelerator pedal
      Adjusting brake/inching pedal
      Adjusting parking brake
      TORQFLOW transmission case
      Differential case
      Bleeding air
      Hydraulic tank
      Measuring hydraulic drift of lift cylinder, tilt cylinder
      Oil and greasing chart
      Lubricant list

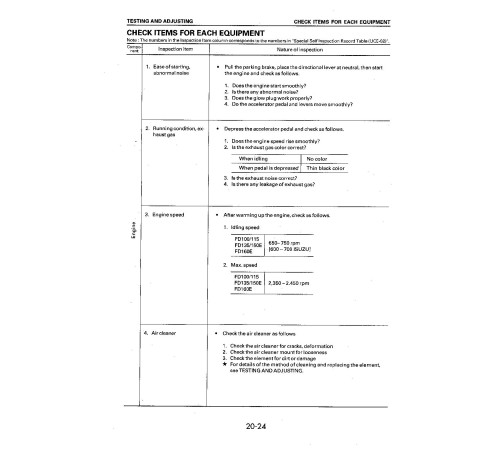

      Check items for each equipment
   REMOVAL AND INSTALLATION
      General locations
      Weight table
      Flowchart
      Removal and installation of unit
      Mast
      Power train
      Brake system .
      Hydraulic system
      Electrical system
      Adjusting of peal
   DISASSEMBLY AND ASSEMBLY
      Torque converter

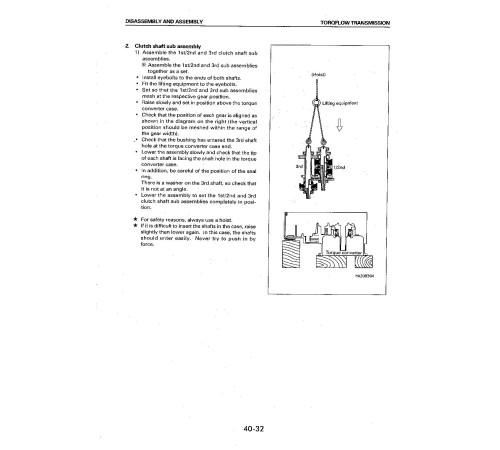

      TORQFLOW transmission
      Drive axle
      Differential
      Steering axle
      Parking brake
      Wheel brake
      Brake valve
      Steering valve .
      Lift cylinder
      Tilt cylinder
      Steering cylinder
      Hydraulic control valve
      Mast
      Special tool
   MAINTENANCE STANDARD
      Engine
      Accelerator
      Speedmeter sensor
      Location of switches and sensors
      Torque converter
      TORQFLOW transmission
      Drive shaft
      Differential
      Final drive
      Rear brake
      Steering
      Frame
      Brake
      Hydraulic equipment
      Lift cylinder
      Tilt cylinder
      Steering cylinder
   STRUCTURE AND FUNCTION
      Powertrain diagram
      Torque converter
      TORQFLOW transmission
      Drive axle
      Steering axle
      Steering system
      Brake
      Hydraulic pumps
      Tilt cylinder
      Hydraulic circuit diagram
      Electric circuit diagram
   TROUBLESHOOTING
      Torque converter
   CONVERSION TABLE
