Komatsu AX50 Series FG15(S)HT(LS)-20, FG18(S)HT(LS)-20, FG20A(S)HT(LS)-20 LPG/Gasoline Forklift Trucks Service Manual (BEA20C1-01)

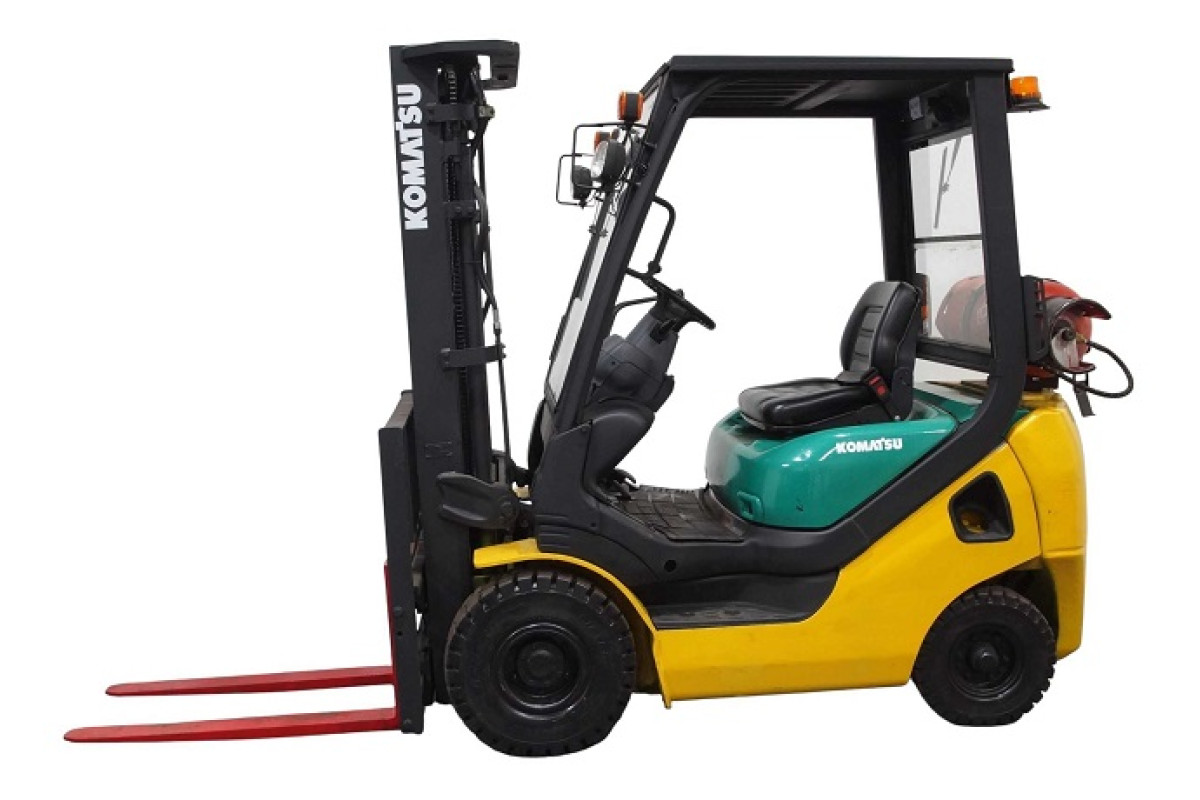

Illustrated factory Service Manual for Komatsu AX50 Series LPG/Gasoline Forklift Trucks Models FG15HT-20, FG15HTLS-20, FG15SHT-20, FG15SHTLS-20, FG18HT-20, FG18HTLS-20, FG18SHT-20, FG18SHTLS-20, FG20AHT-20, FG20AHTLS-20, FG20ASHT-20 and FG20ASHTLS-20.

This manual will assist you in diagnosing, analyses, testing, and repair for your lpg forklift truck.
You can use a Windows, Mac, or Android device to view this manual. You only need to have a PDF reader installed.

Covered Models:
   FG15HT-20 (SN: 672057-)
   FG15HTLS-20 (SN: 672057-)
   FG15SHT-20 (SN: 672057-)
   FG15SHTLS-20 (SN: 672057-)
   FG18HT-20 (SN: 672057-)
   FG18HTLS-20 (SN: 672057-)
   FG18SHT-20 (SN: 672057-)
   FG18SHTLS-20 (SN: 672057-)
   FG20AHT-20 (SN: 672057-)
   FG20AHTLS-20 (SN: 672057-)
   FG20ASHT-20 (SN: 672057-)
   FG20ASHTLS-20 (SN: 672057-)

Format: PDF, 458 pages
Language: English
Table of Contents:
   SAFETY
      SAFETY MANAGEMENT
      SAFE TRAVEL
      LOADING OPERATIONS
      SAFETY IN PERIODIC MAINTENANCE
      TOWING
      STRUCTURE AND STABILITY OF THE LIFT TRUCK
      TRUCK DATA - PNEUMATIC TIRE LIFT TRUCKS (OUTDOOR)
      TRUCK DATA - CUSHION TIRE LIFT TRUCKS (INDOOR)
      AX50 SERVICE DATA - ALL MODELS
      WEIGHT TABLE
      SPECIFICATIONS
      PERIODIC REPLACEMENT OF CONSUMABLE PARTS
      STANDARD TIGHTENING TORQUE FOR BOLTS
      STANDARD TIGHTENING TORQUE FOR PIPE JOINTS
      LUBRICANT AND FUEL CAPACITIES
   SPECIFICATIONS AND GENERAL INFORMATION
   OPERATOR COMPARTMENT
      STRUCTURE AND FUNCTION
      PERIODIC INSPECTION AND MAINTENANCE
      TESTING AND ADJUSTING
      REMOVAL AND INSTALLATION
      DISASSEMBLY AND ASSEMBLY
      MAINTENANCE STANDARD
   ENGINE
      STRUCTURE AND FUNCTION
      PERIODIC INSPECTION AND MAINTENANCE
      TESTING AND ADJUSTING
      REMOVAL AND INSTALLATION
      DISASSEMBLY AND ASSEMBLY
      mAINTENANCE STANDARD

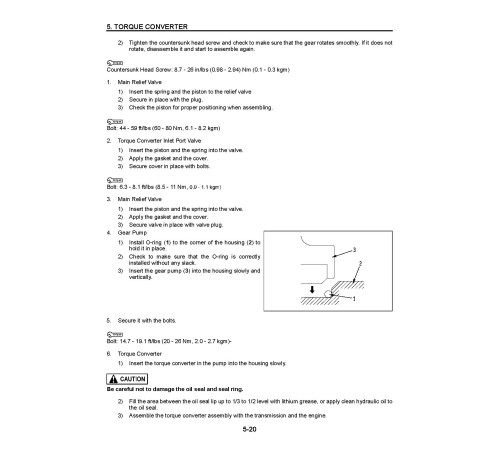

   TORQUE CONVERTER
      Structure and function
      Periodic Inspection
      testing and Adjusting
      Removal and Installation
      Disassembly and Assembly
      Maintenance Standard
   TORQFLOW TRANSMISSION
      Structure and function
      Periodic Inspection AND MAINTENANCE
      testing and Adjusting
      Removal and Installation
      Disassembly and Assembly
      Maintenance Standard
   DRIVE AXEL
      Structure and function
      Periodic Inspection AND MAINTENANCE
      testing and Adjusting
      Removal and Installation
      Disassembly and Assembly
      Maintenance Standard
   STEERING SYSTEM
      Structure and function
      STEERING AXLE
      Periodic Inspection AND MAINTENANCE
      testing and Adjusting
      Removal and Installation
      Disassembly and Assembly
      Maintenance Standard
   WHEEL BRAKE
      STRUCTURE AND FUNCTION
      PERIODIC INSPECTION AND MAINTENANCE
      REMOVAL AND INSTALLATION
      DISASSEMBLY AND ASSEMBLY
      mAINTENANCE STANDARD
   HYDRAULIC SYSTEM
      Structure and function
      Periodic Inspection AND MAINTENANCE
      Removal and Installation
      Disassembly and Assembly
      Maintenance Standard
   WORK EQUIPMENT
      Structure and function
      Periodic Inspection AND MAINTENANCE
      MEASURE HYDRAULIC DRIFT OF LIFT AND TILT CYLINDERS
      Removal and Installation
      Disassembly and Assembly
      Maintenance Standard
   ES30/ES40 MS LIMITED FREE LIFT 2-STAGE MAST
      Introduction
      Installation
      Periodic maintenance
      Troubleshooting
      Service

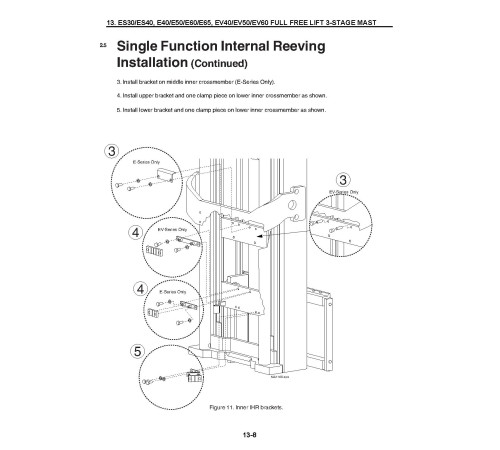

   ES30/ES40, E40/E50/ E60/E65, EV40/EV50/ EV60 FULL FREE LIFT 3-STAGE MAST
      Introduction
      Installation
      Periodic Maintenance
      Troubleshooting
      Service
   D/45D/55D MQ Quad Mast
      iNTRODUCTION
      INSTLATION
      PERIODIC MAINTENANCE
      TROUBLESHOOTING
      SERVICE
   CONVERSION TABLES
      Millimeters to Inches
      Inches to Millimeters
      Cubic meters to Cubic yards
      Cubic yards to Cubic meters
      Liter to U.S. Gallon
      U. S. Gallon to Liter
      Liter to U.K. Gallon
      U. K. Gallon to Liter
      Kilogram to Pound
      Pound to Kilogram
      Kg/cm2 to lb/in2
      Kgm to ft. lb
      Temperature (Fahrenheit/Centigrade)
